Maverick and Comet Repair
Chassis Electrical
Click Thumbnail for Larger View...Use Back Button to Return

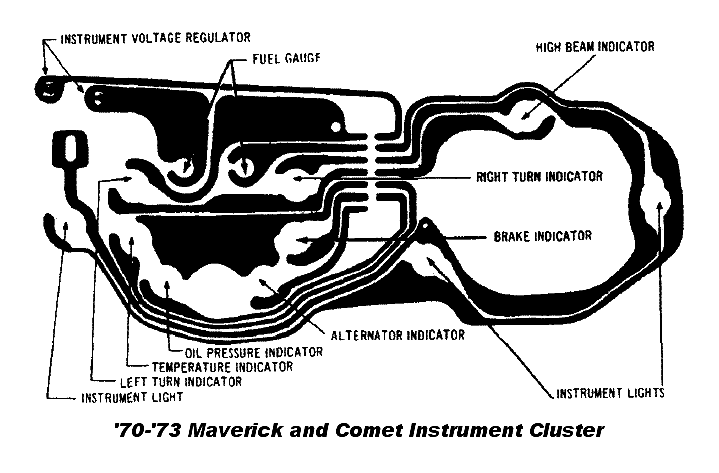

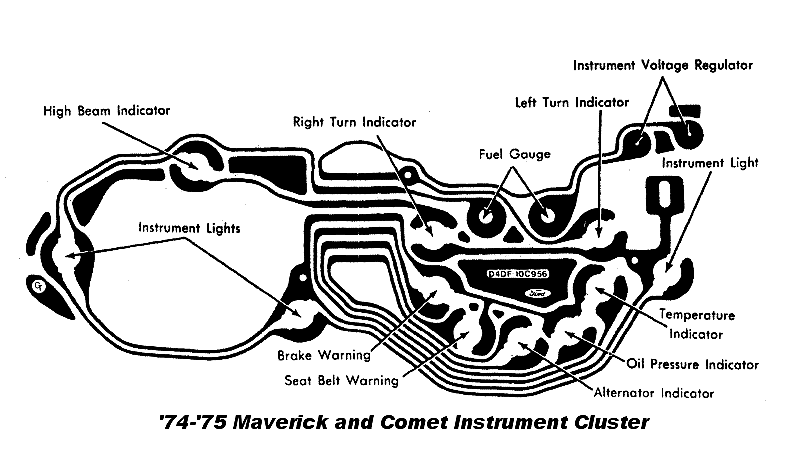

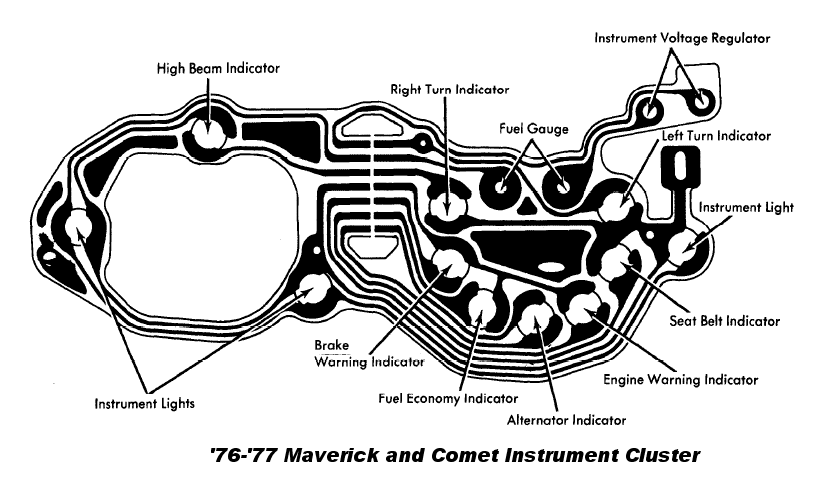

Instrument Cluster Printed Circuit
 1970-73 |
 1974-75 |
 1976-77 |
Maverick Wiring Diagrams
'70
Wiring |
'71
Wiring |
'72
Wiring |
'73
Wiring |
|
'74
Wiring |
'75
Wiring |
'76
Wiring |
'77
Wiring |
Comet Wiring Diagrams
|
'71 Wiring
|
'72 Wiring
|
'73 Wiring
|
'74 Wiring
|
|
'75 Wiring
|
'76 Wiring
|
'77 Wiring
|

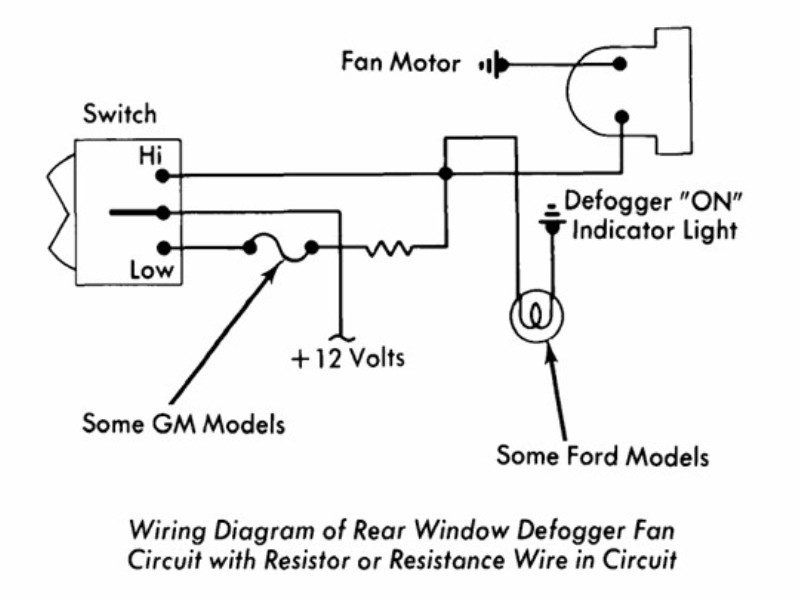

Window Defogger Fan
