Tail Lamp Assembly

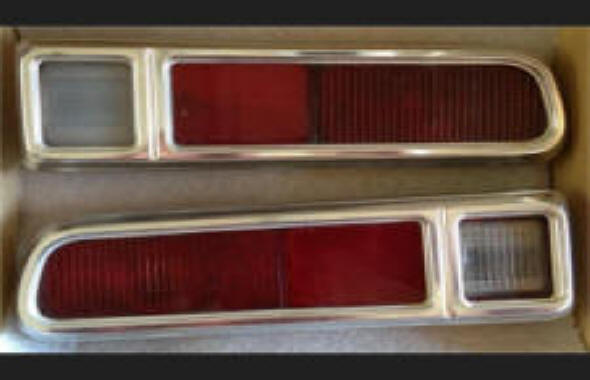

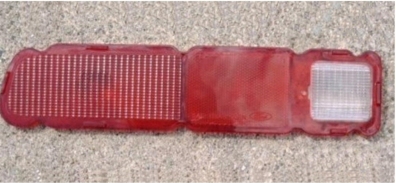

There was a change sometime in either late 70 or early 71 with the tail light assemblies. I have seen both style assembles on the same car. Notice the reverse lens on the late lens has a red border on the top and bottom. The lens texture pattern is also different. Not shown in photos are the gaskets to go with the different lens.
The differences are:

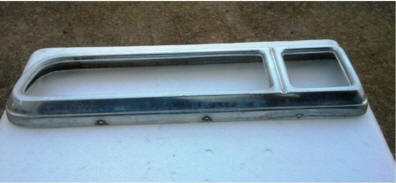

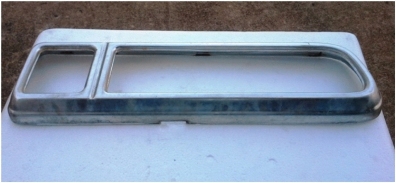

- BEZEL

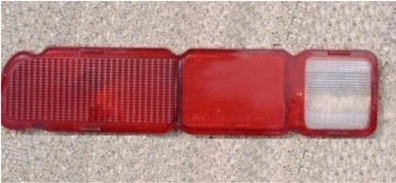

- LENS

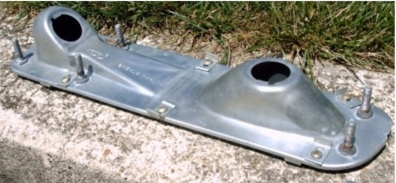

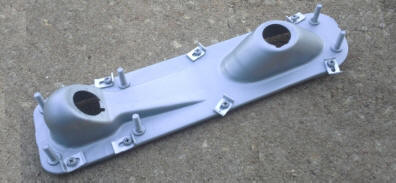

- HOUSING
- GASKETS
Early Assembly |
Late Assembly |
 |
 |
| Single Large Squared Drain Hole | Three Small Round Drain Holes |
 |
 |
| Six Cut-outs for Retaining Clips | Eight Cut-outs for Retaining Clips |
 |
 |
| Six Retaining Clips | Eight Retaining Clips |

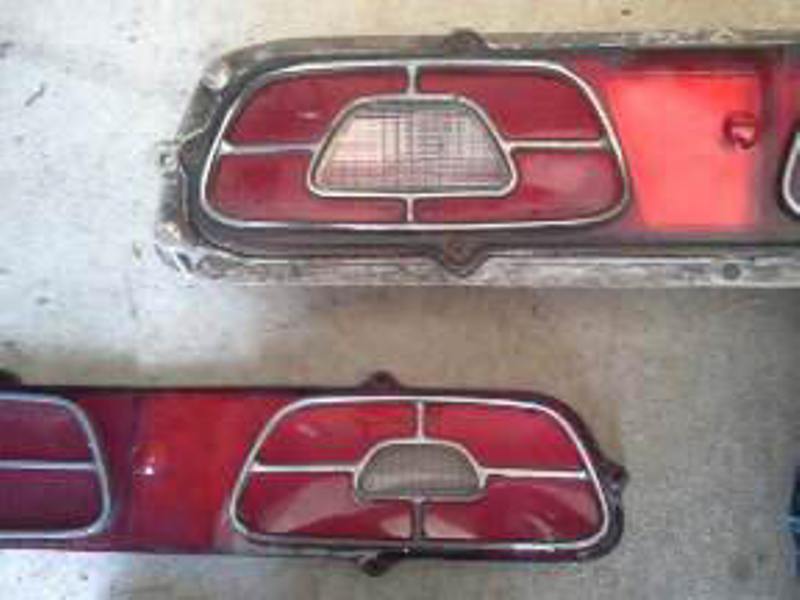

The 71-72 Comet tail lights have a smaller reverse lens compared to the 73-77 lens.
