Maverick and Comet Repair

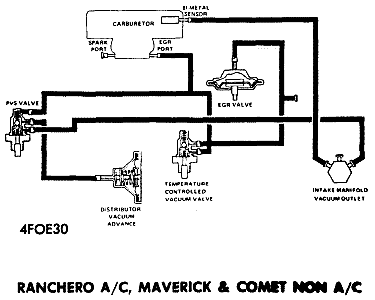

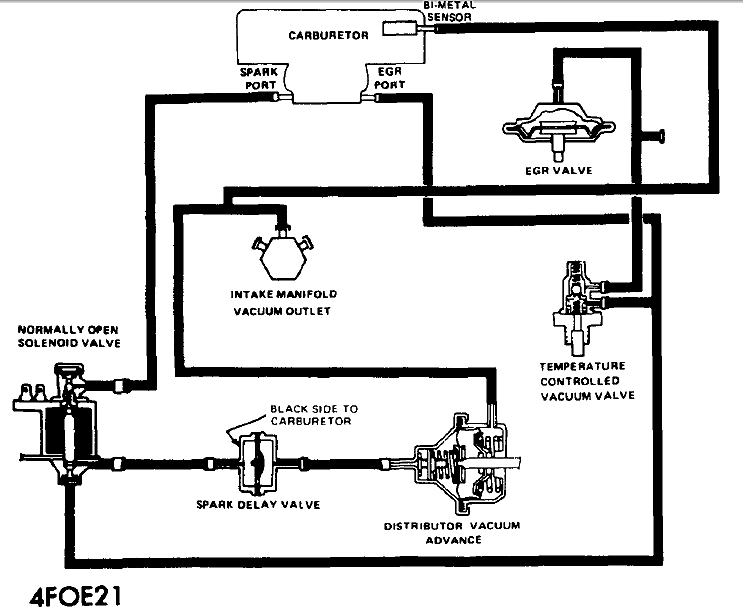

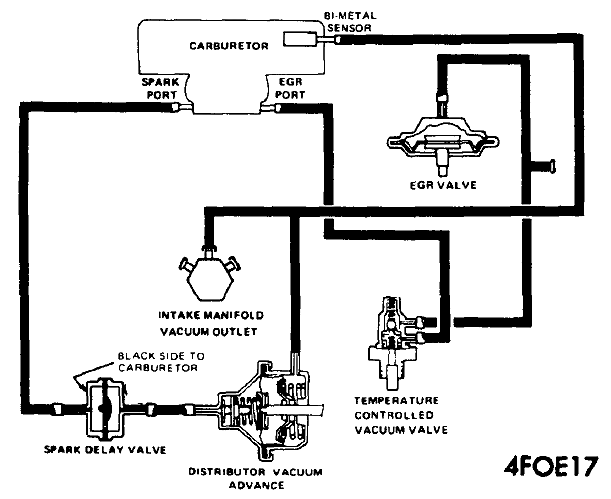

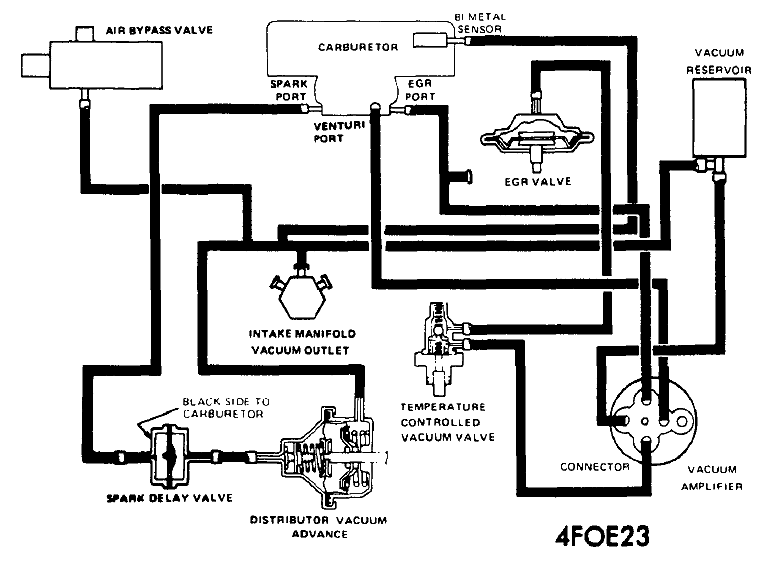

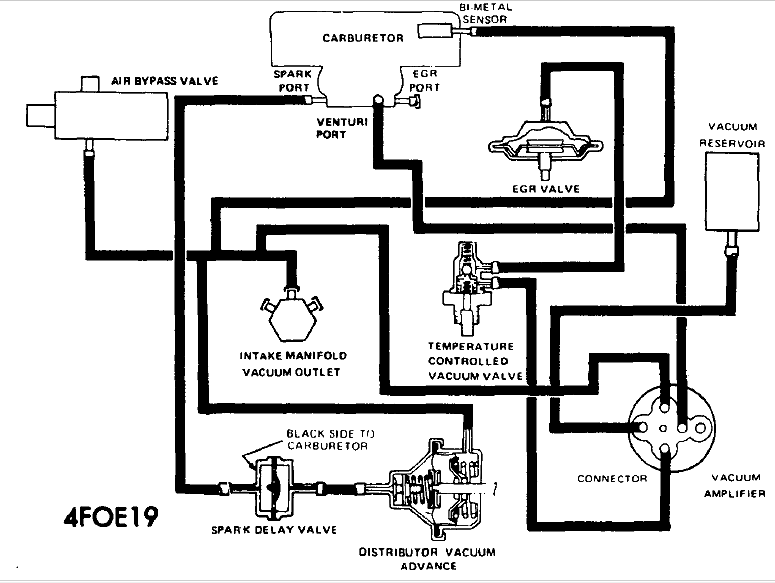

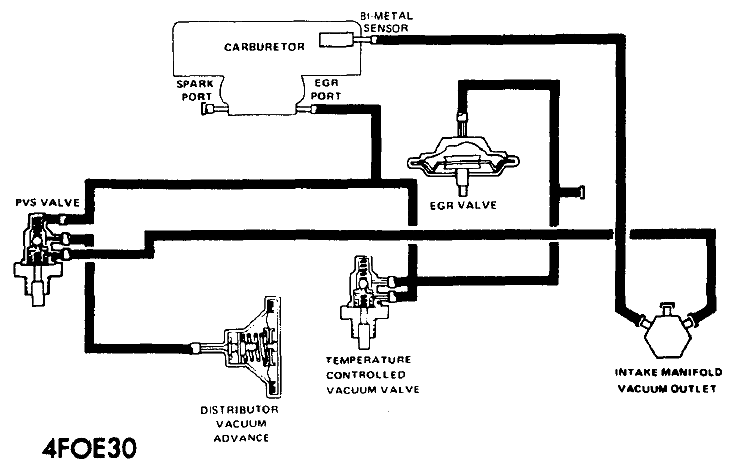

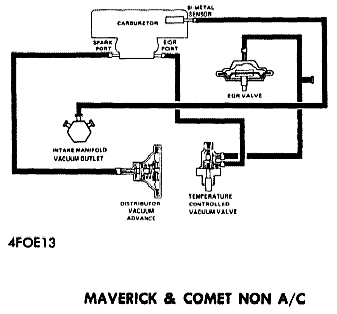

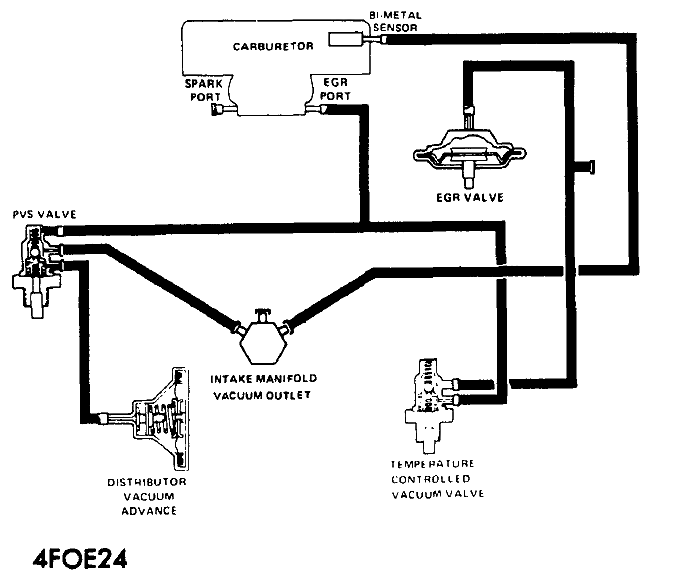

1974 Vacuum Diagrams without A/C

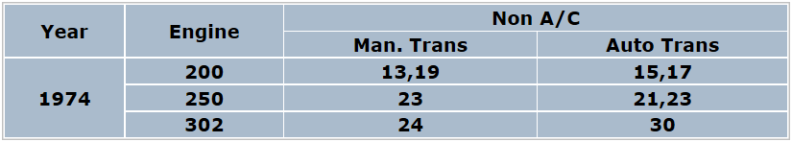

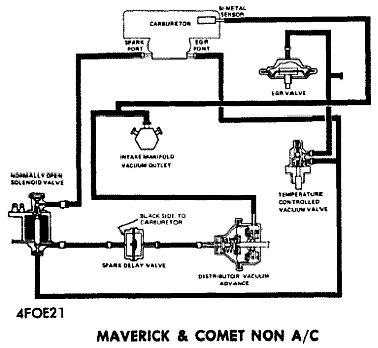

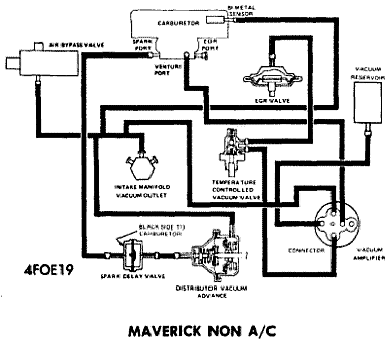

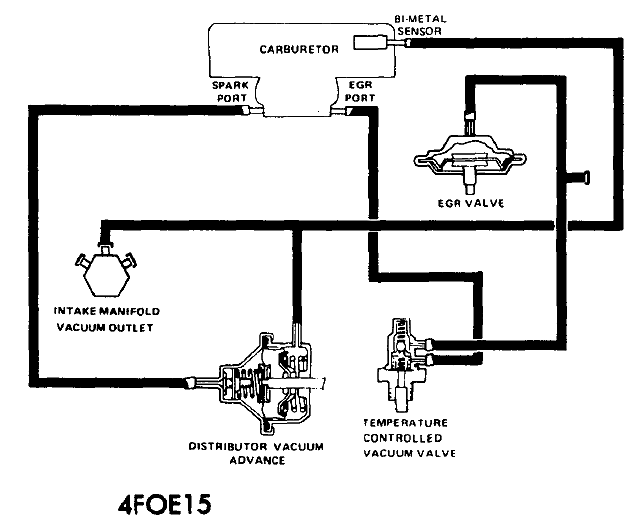

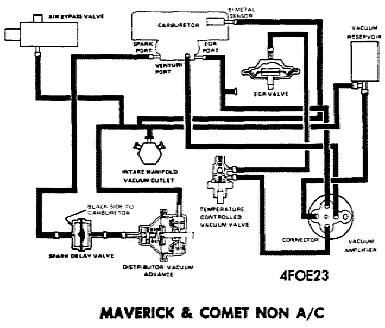

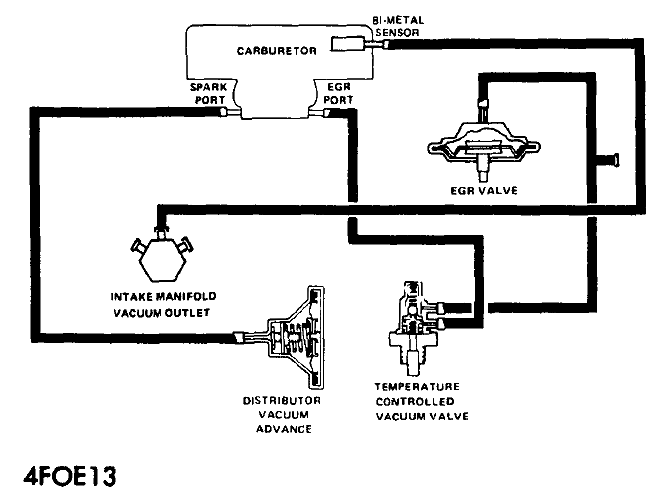

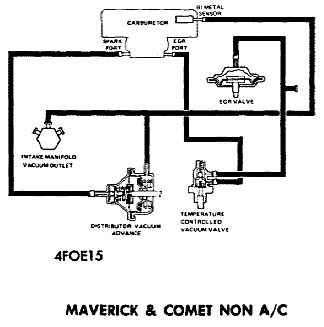

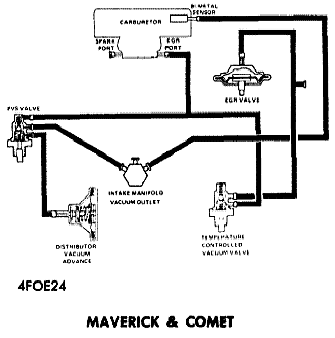

1974 System shown below are used depending upon engine, carburetor, and transmission, see charts below to determine usage.
 |
 |
 |
 |
 |
 |
 |
 |
1974 System shown below are used depending upon engine, carburetor, and transmission, see charts below to determine usage.
|
|
|
|
|
|
|
|
|
|
|
|
