Fuel System
Click Thumbnail for Larger View...Use Back Button to
Return
Might have to left click image again to see full size if
your settings are set to auto resize

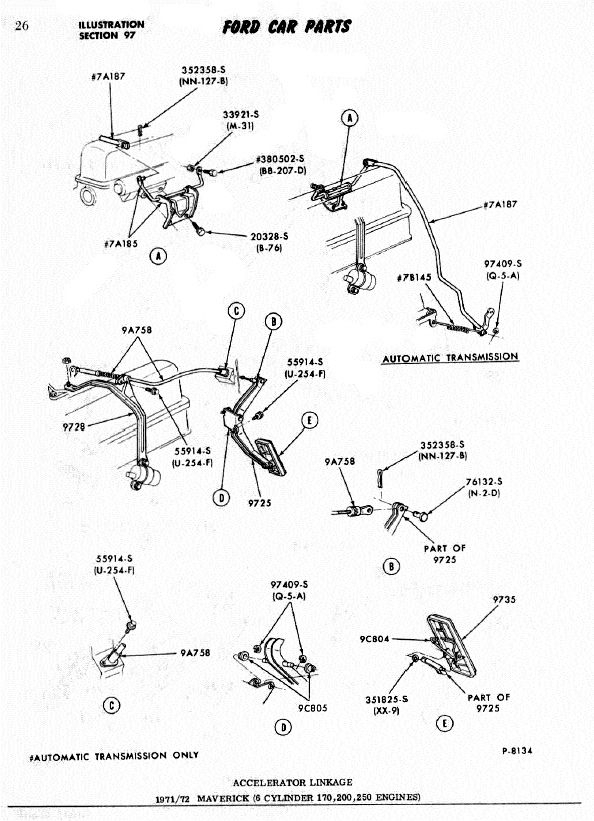

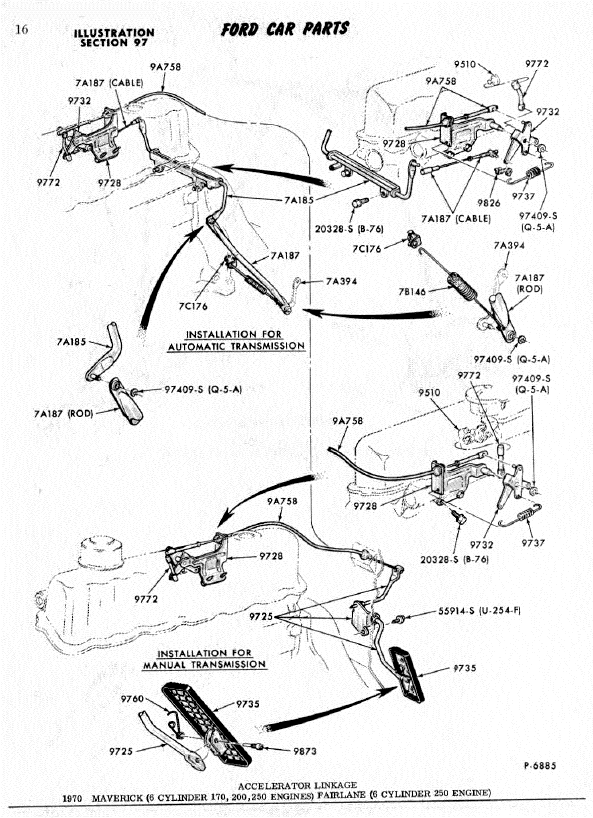

 '70 6 Cyl Accelerator Linkage |

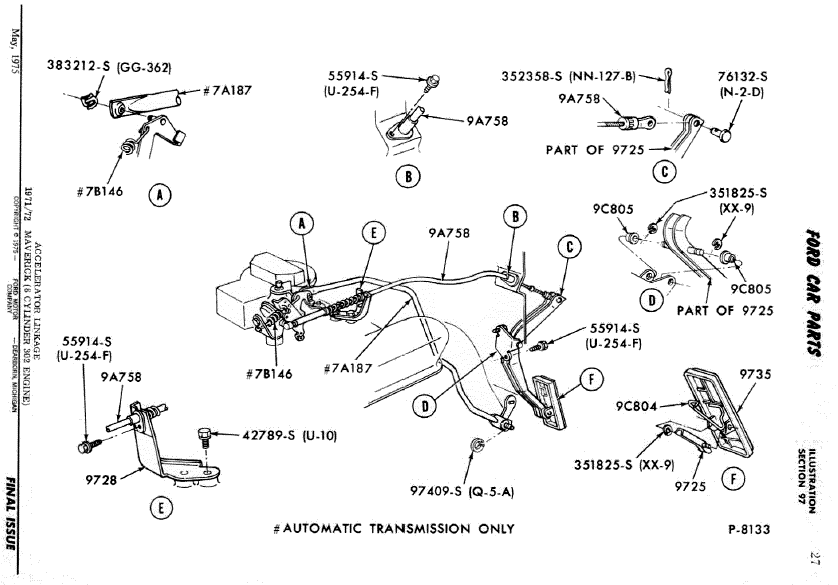

 '71 6 Cyl Accelerator Linkage |
 '71 8 Cyl Accelerator Linkage |

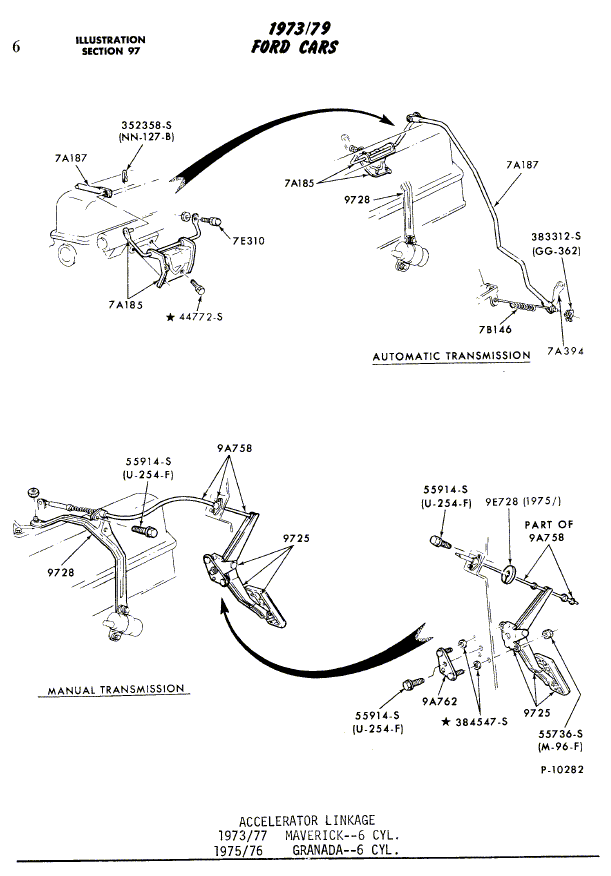

 73-74 6 Cyl Accelerator Linkage |

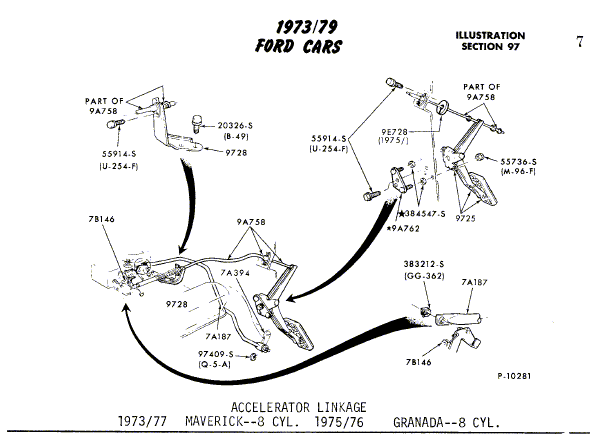

 73-77 8 Cyl Accelerator Linkage |

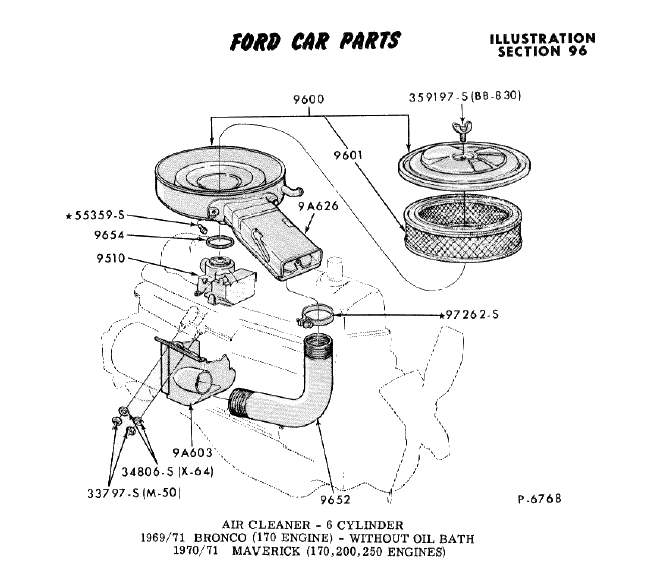

 70-71 Air Cleaner 6 Cyl |

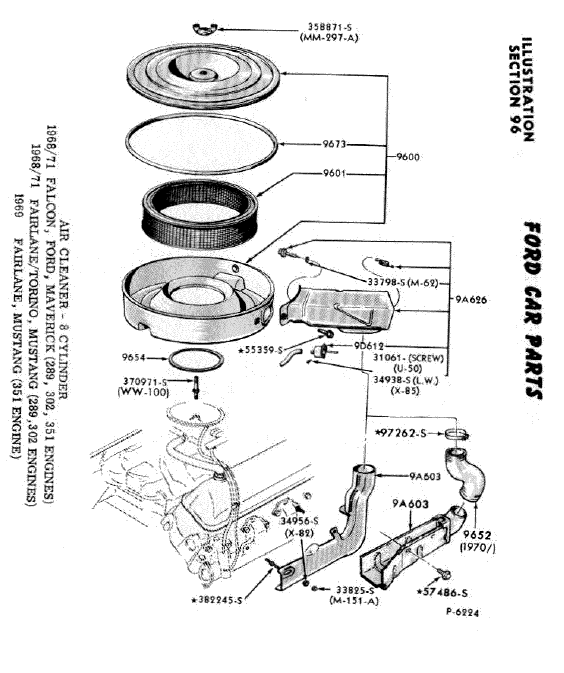

 70-71 Air Cleaner 8 Cyl |

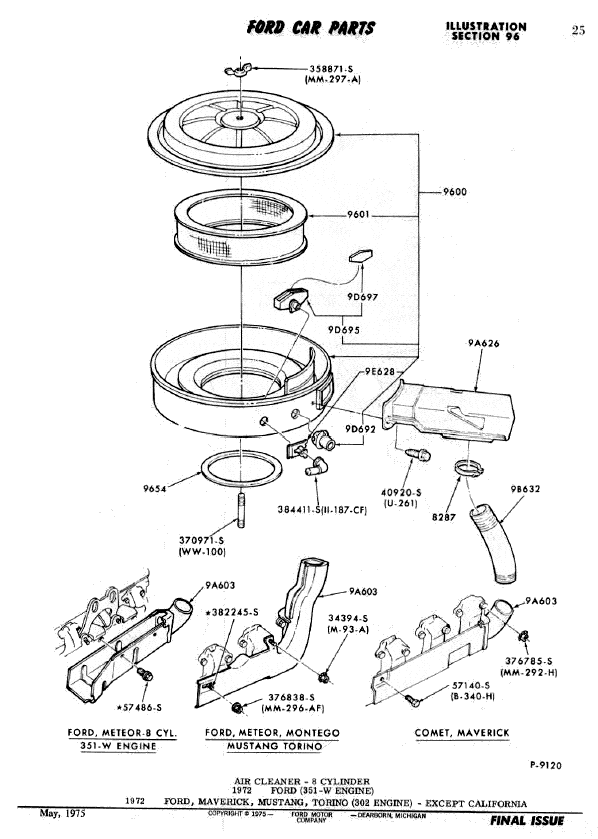

 72 Air Cleaner 8 Cyl |

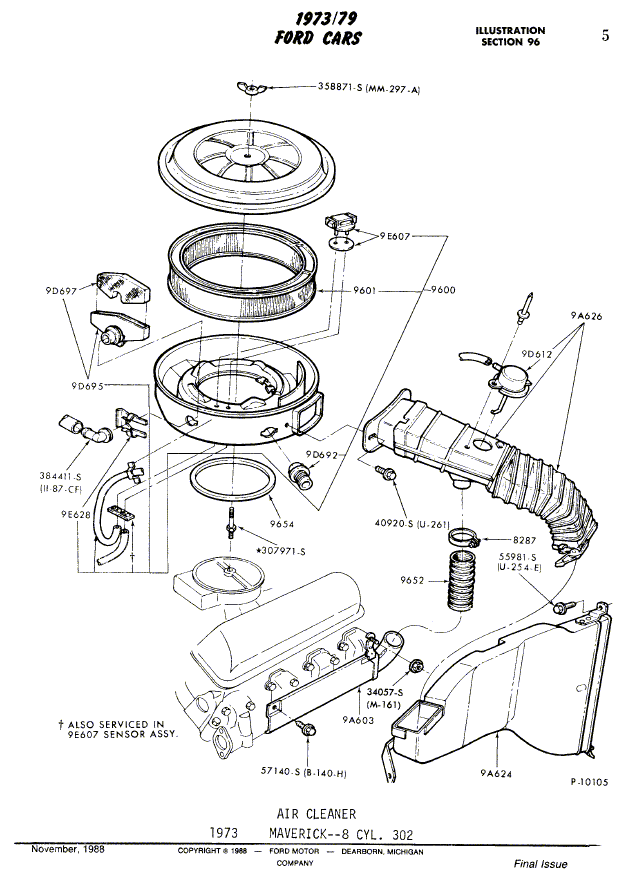

 73 8 Cyl Air Cleaner |

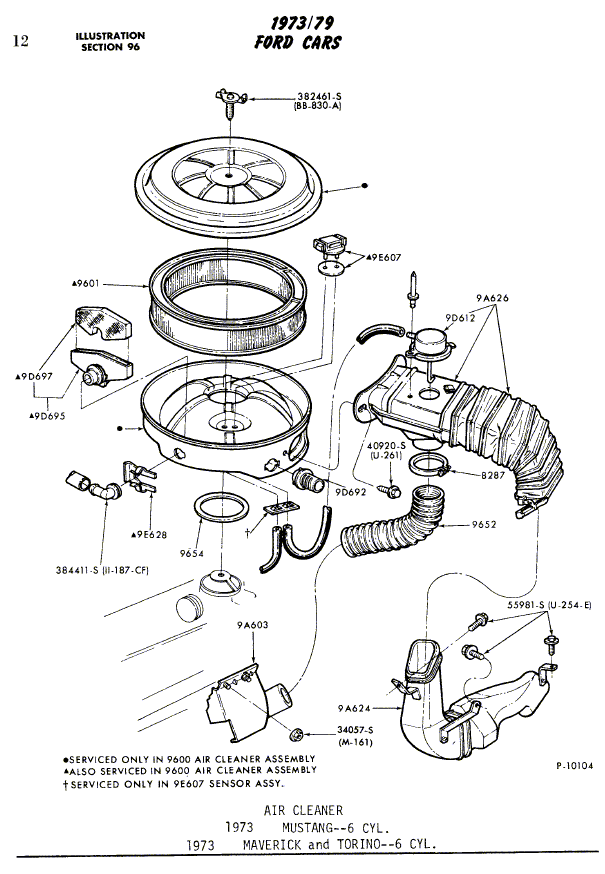

 73 6 Cyl Air Cleaner |

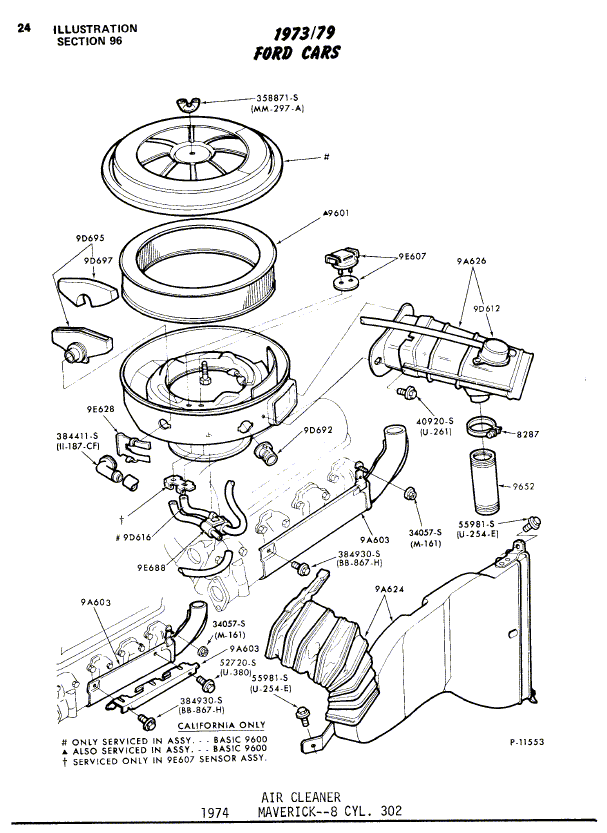

 74 8 Cyl Air Cleaner |

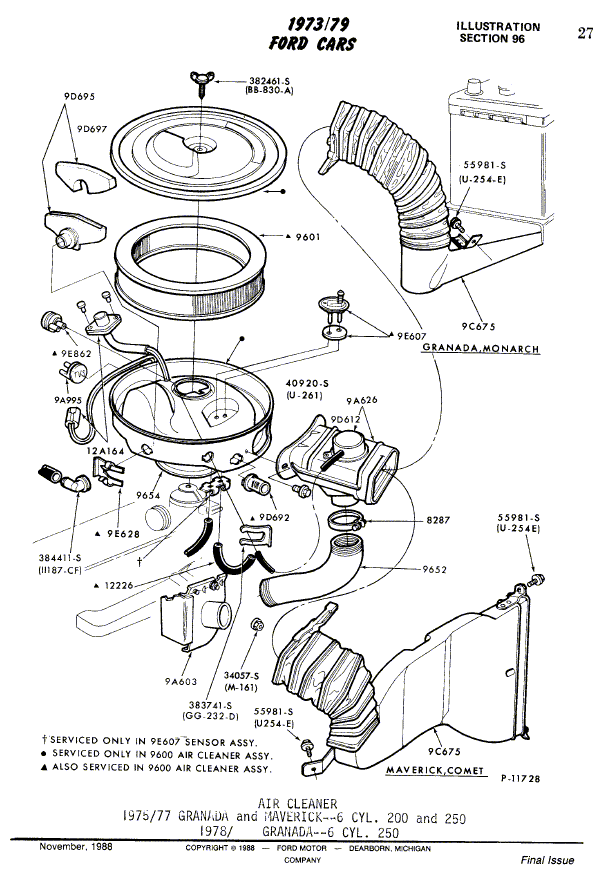

 75-77 6 Cyl Air Cleaner |

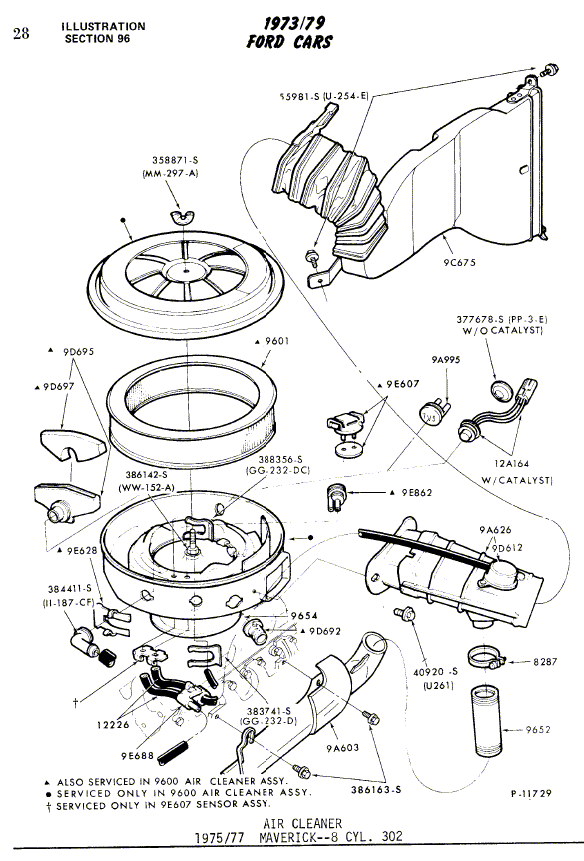

 75-77 8 Cyl Air Cleaner |

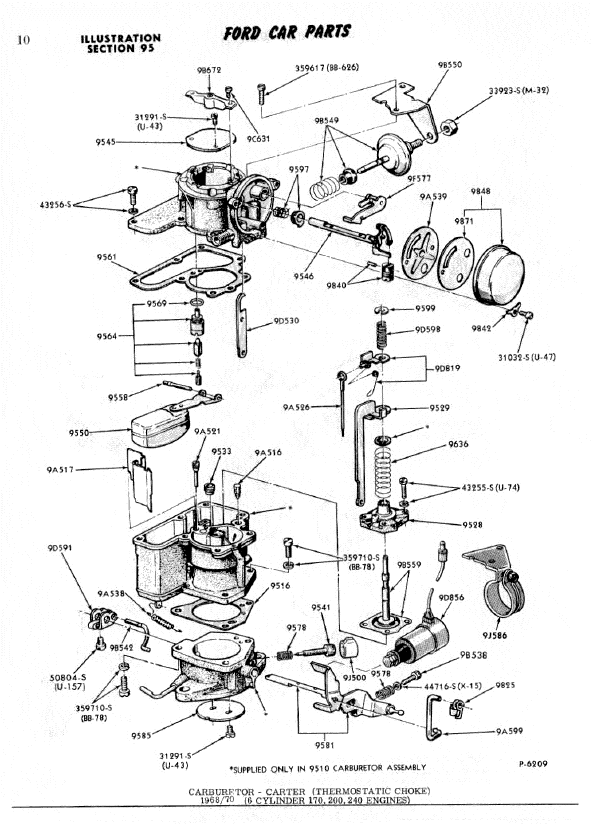

 Carter Thermal Choke '70 |

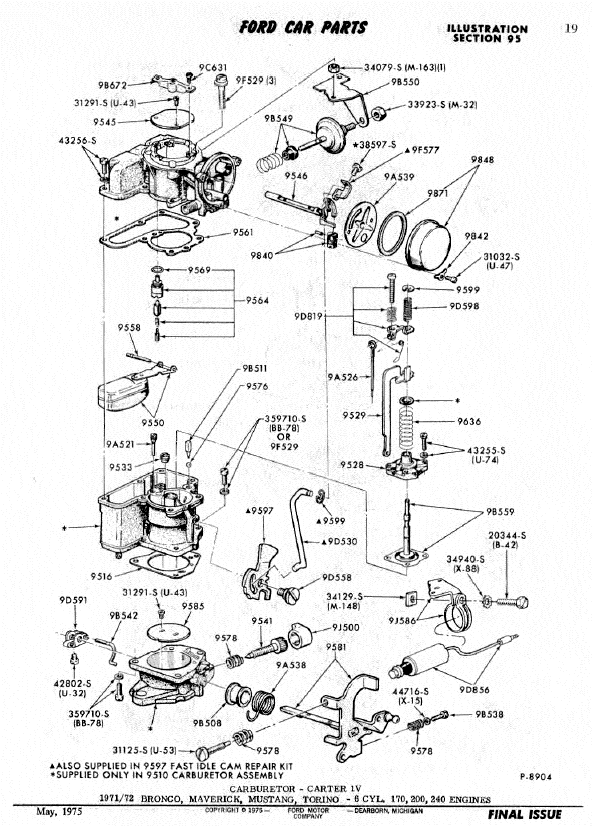

 71-72 Carter 1-V |

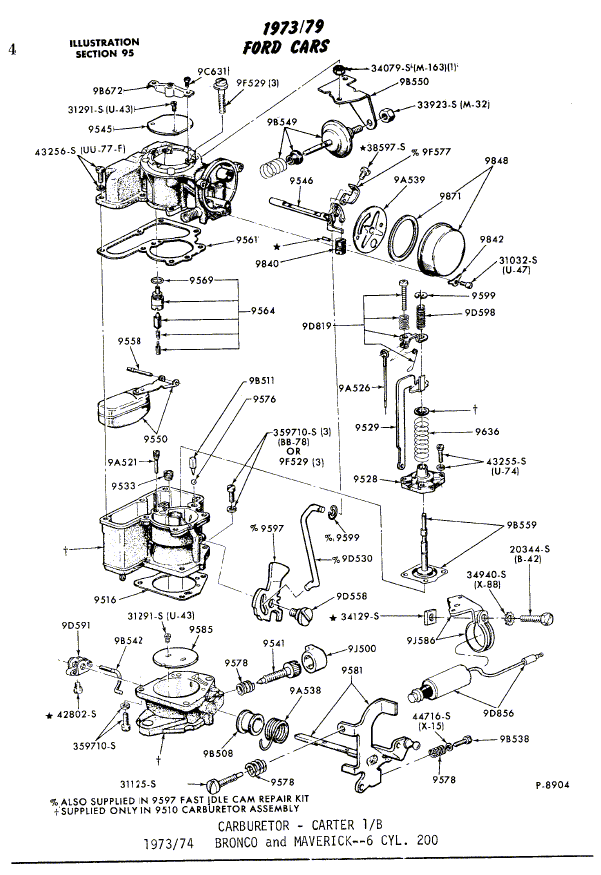

 73-74 Carter 1-V |

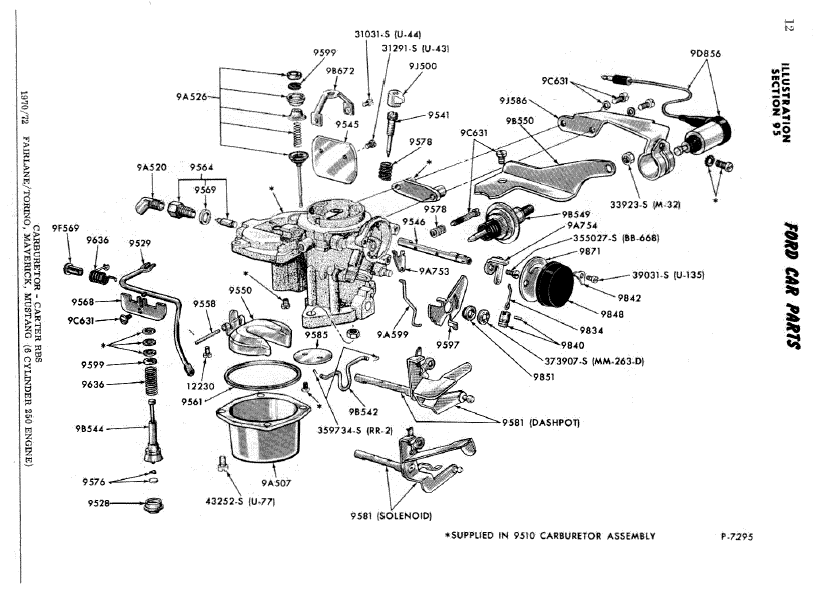

 70-72 Carter RBS |
 73-74 Carter RBS |

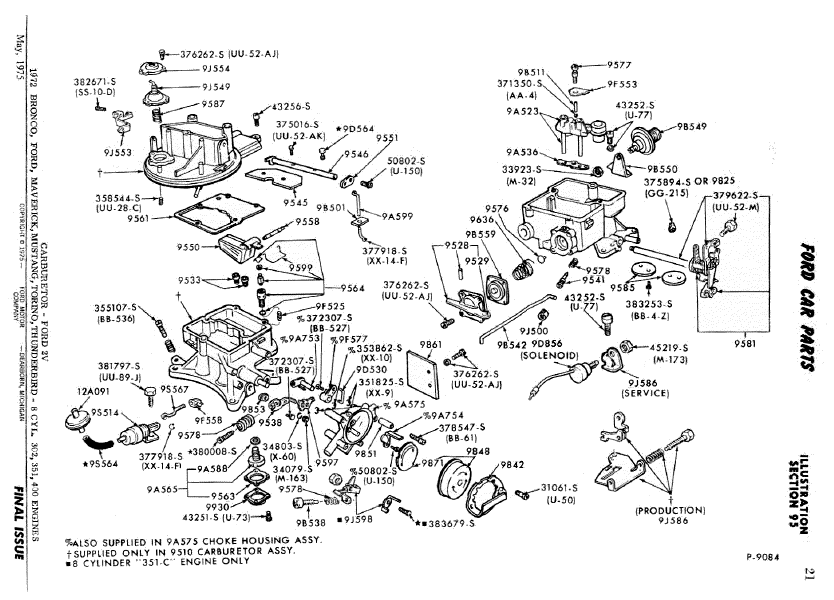

 72 Ford 2-V |

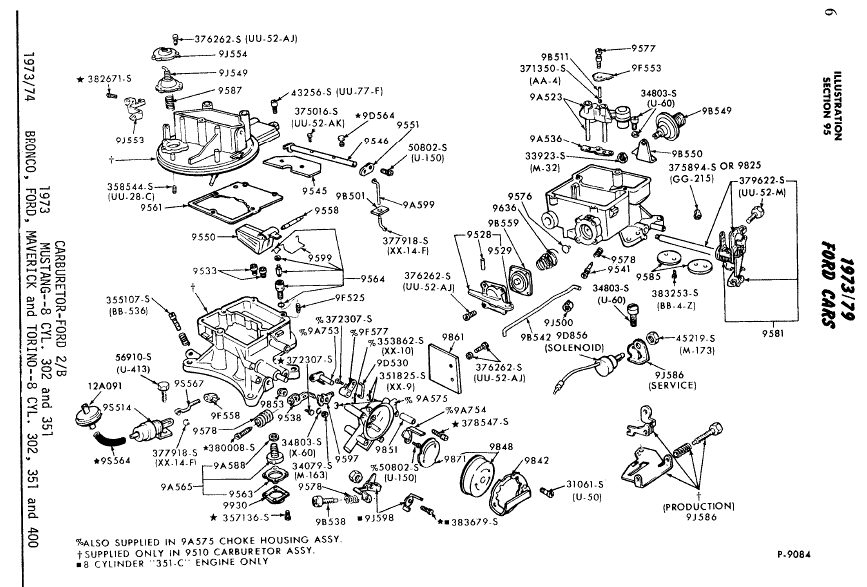

 73-74 Ford 2-V |

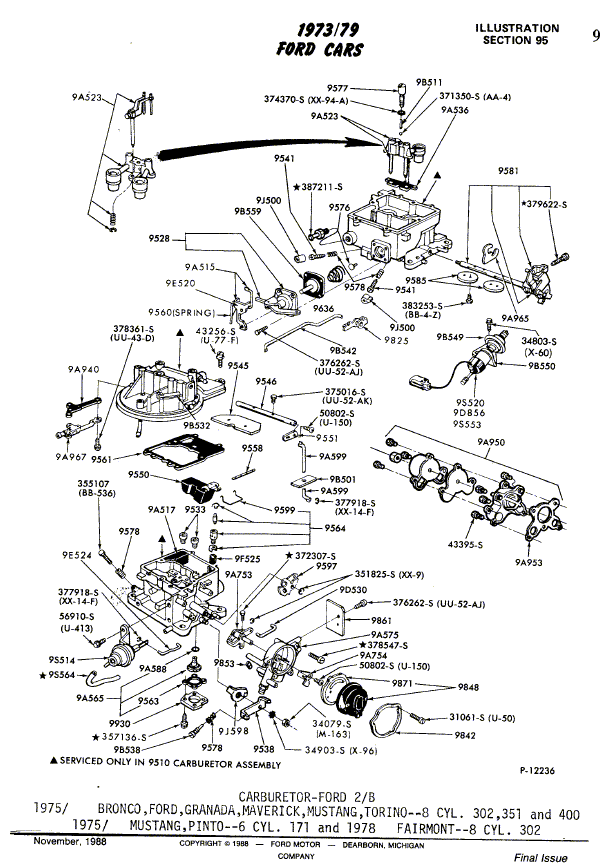

 75-79 Ford 2-V |

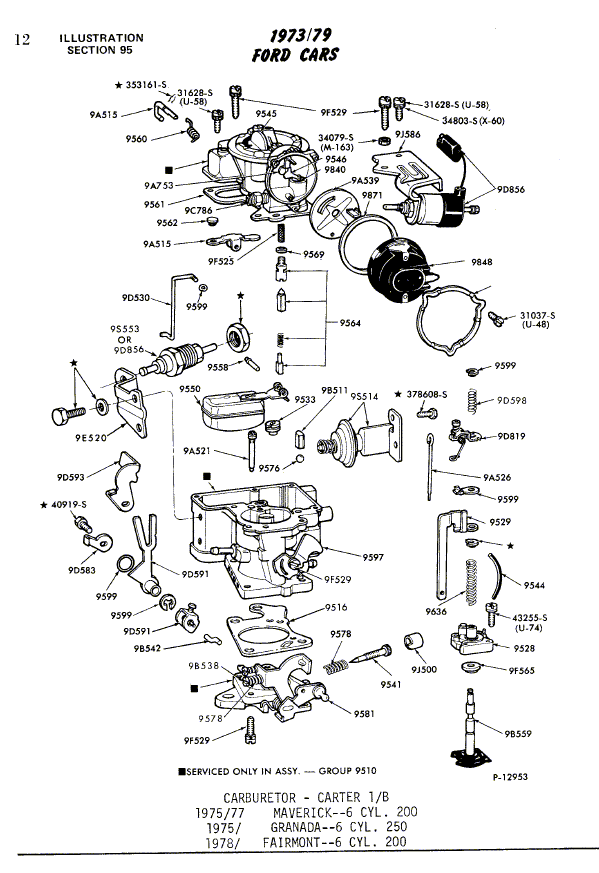

 75-77 6 Cyl 200 Carter |

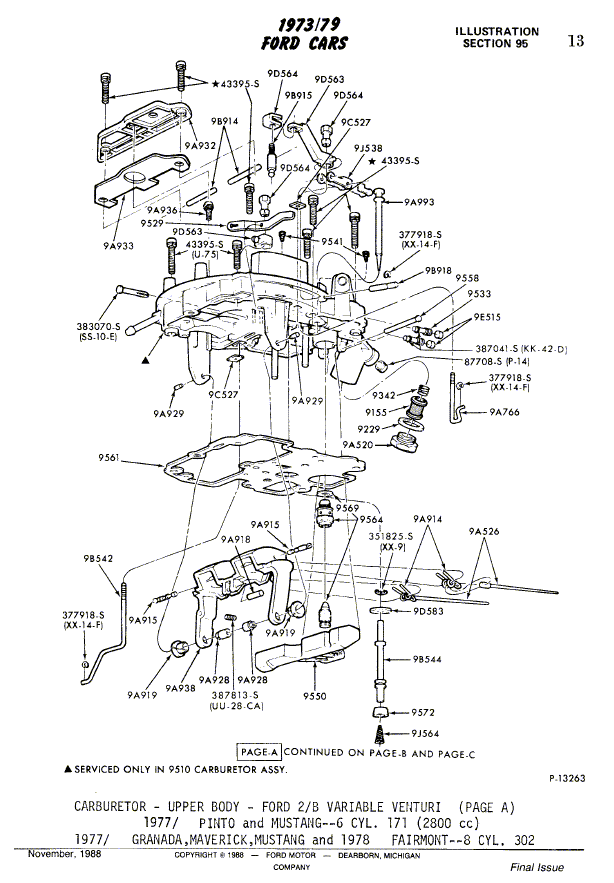

 77 Ford 8 Cyl 2-V Variable Venturi |

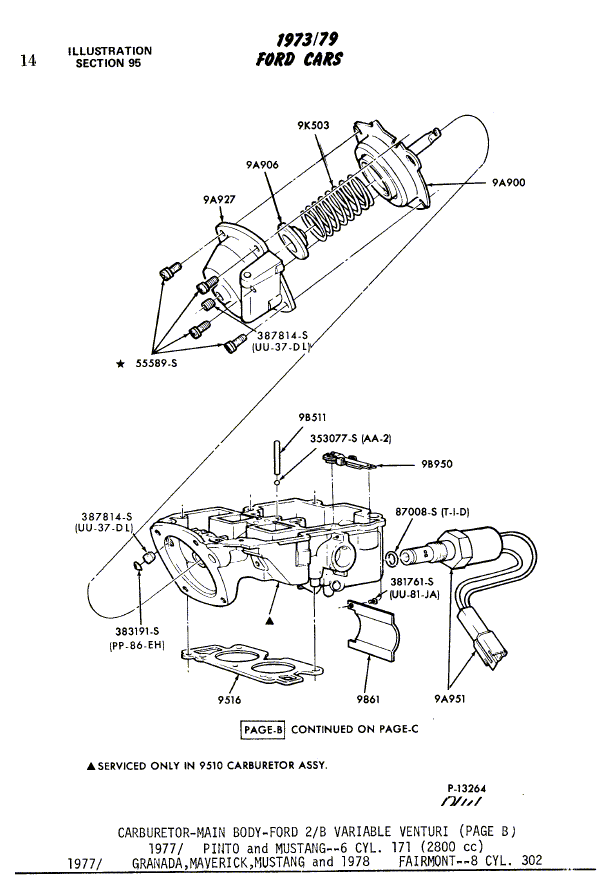

 77 Ford 8 Cyl 2-V Variable Venturi |

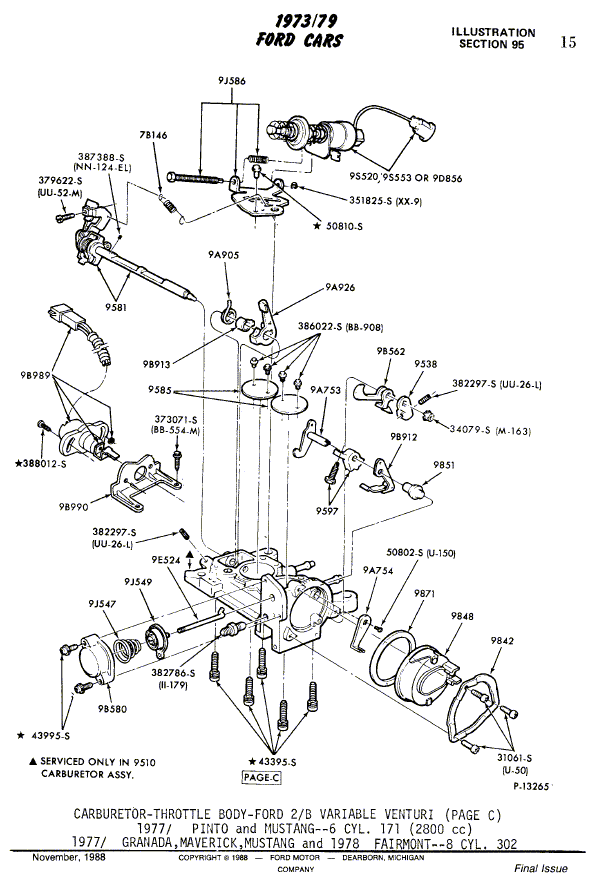

 77 Ford 8 Cyl 2-V Variable Venturi |

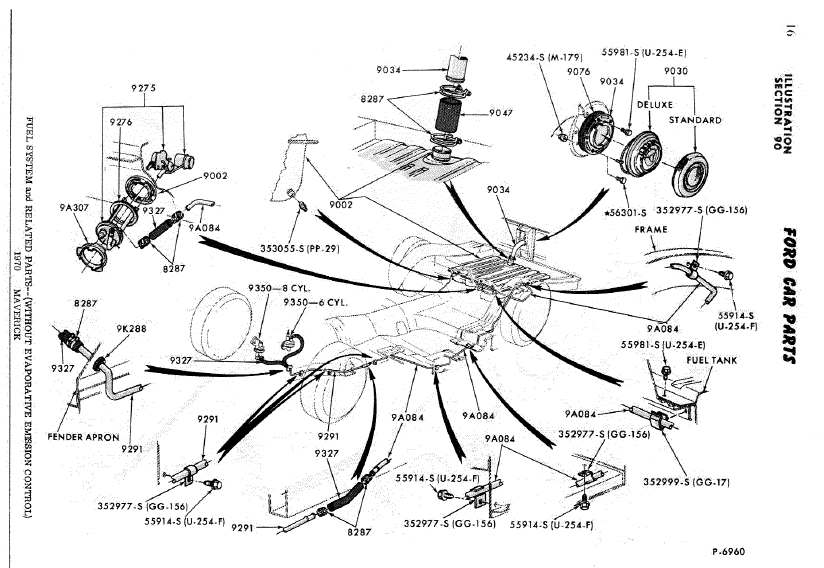

 '70 Fuel System Emission |
 '70 Fuel System Non-Emission |

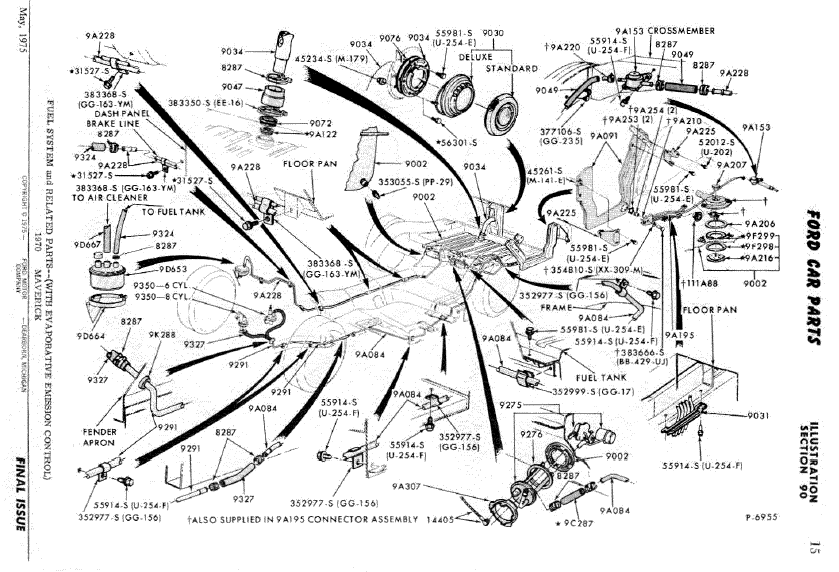

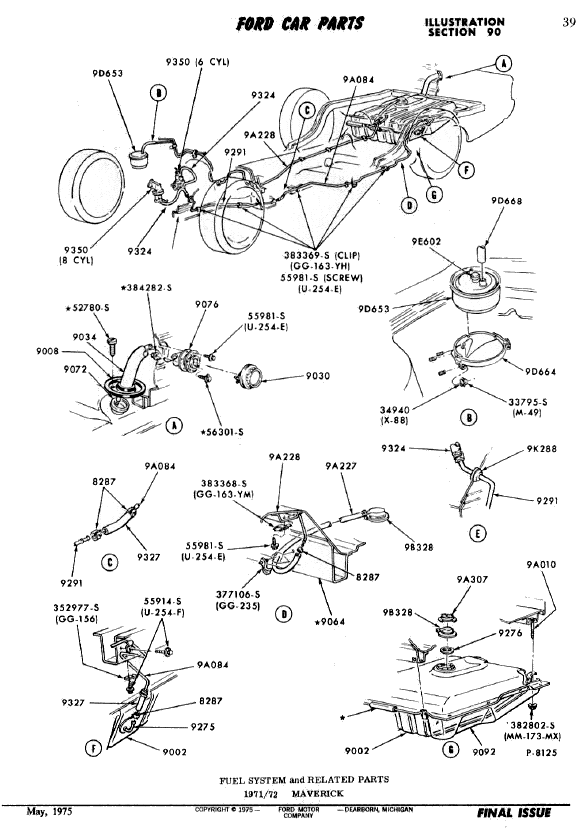

 71-72 Fuel System |
 73 Fuel System |

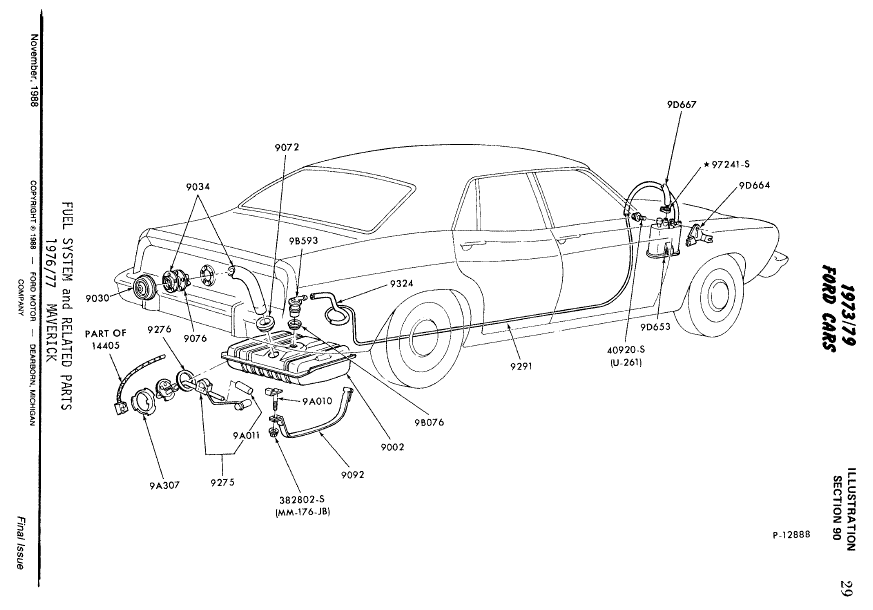

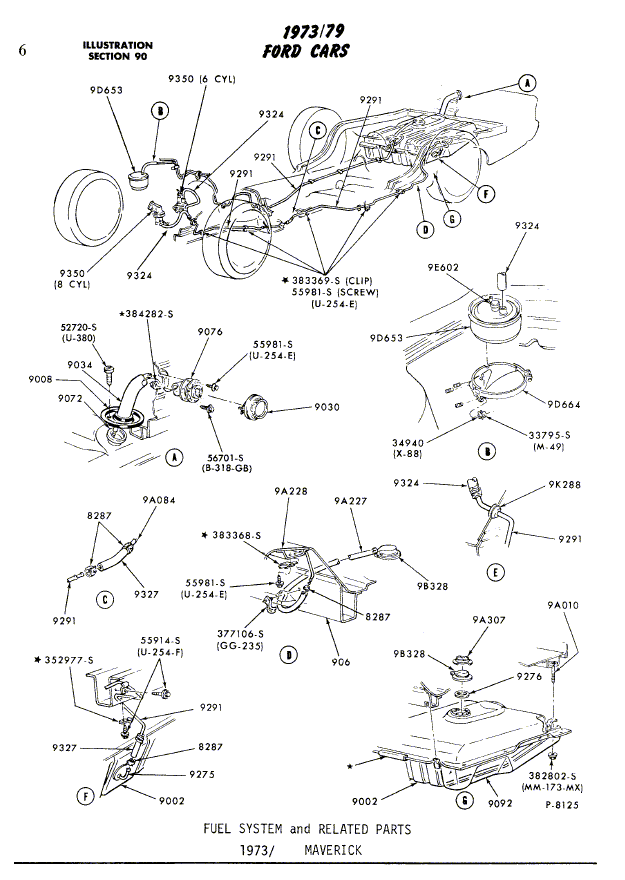

 76-77 Fuel System |
