Maverick and Comet Repair

VENTILATION

Click Thumbnail for Larger View...Use Back Button to Return
Might have to left click image again to see full size if your settings are set to auto resize

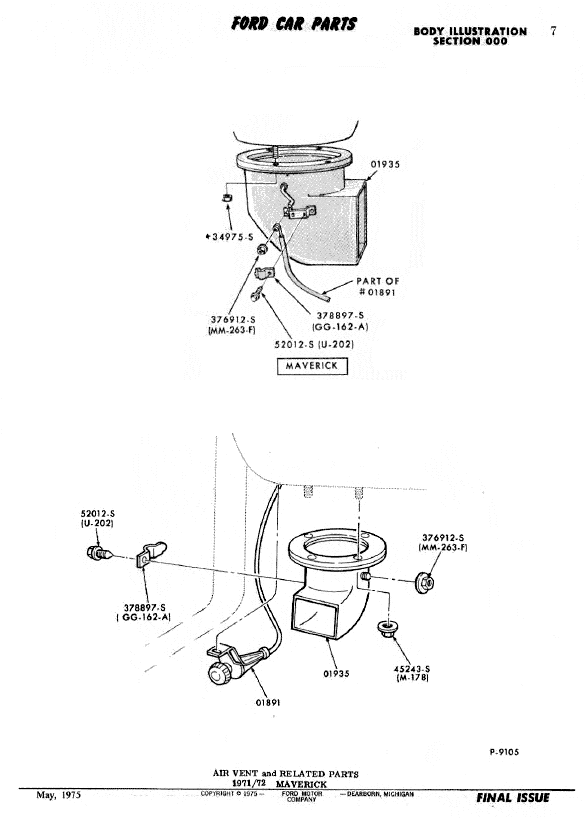

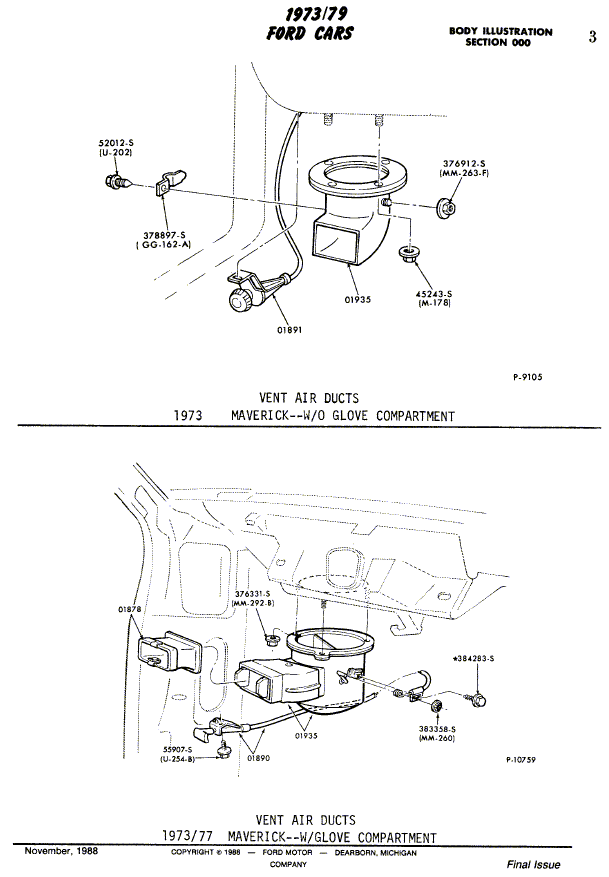

70-72 Fresh Air Vent	73-77 Fresh Air Vent	Hoses 8 Cyl Integral	70-72 Integral A/C 6 Cyl

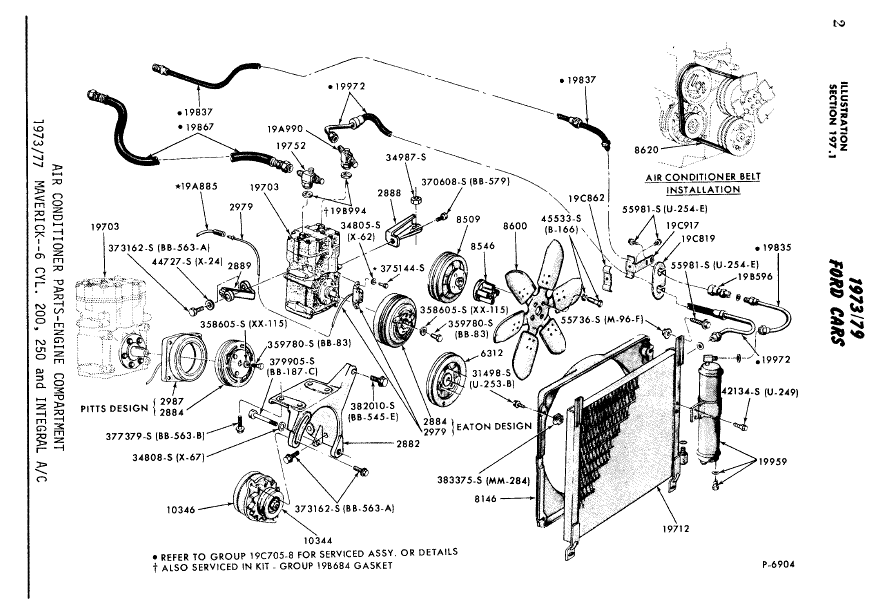

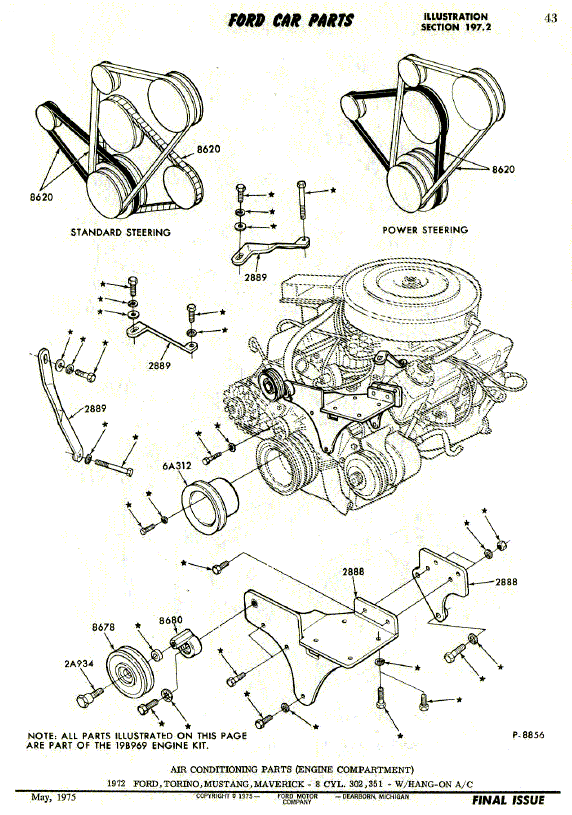

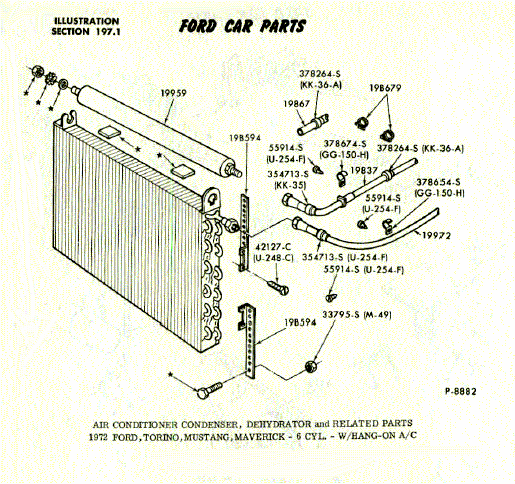

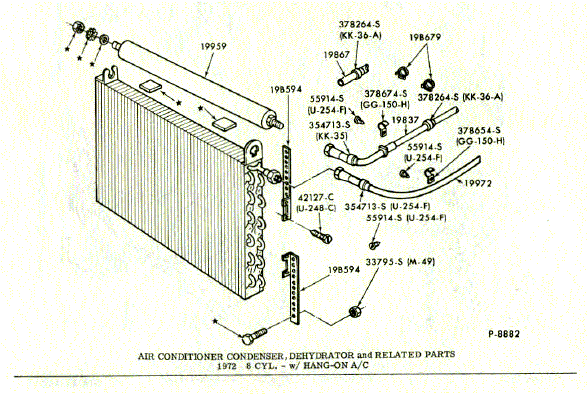

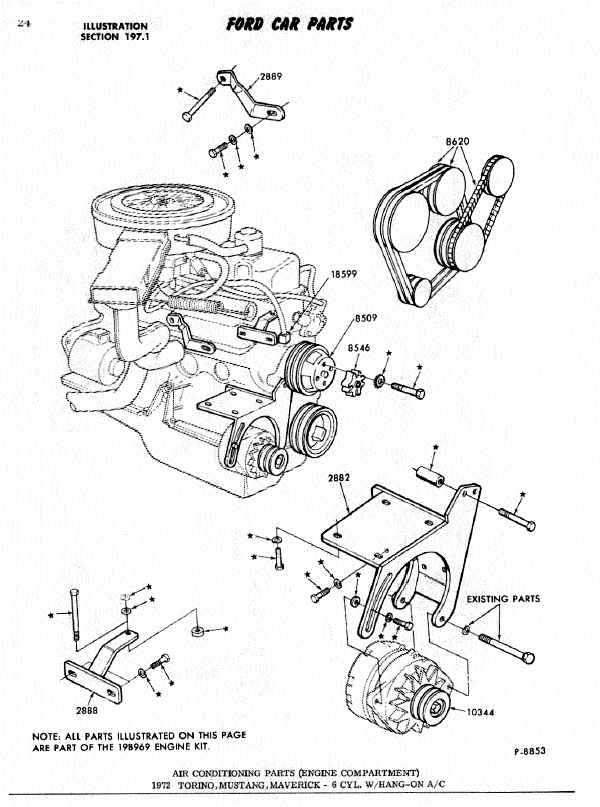

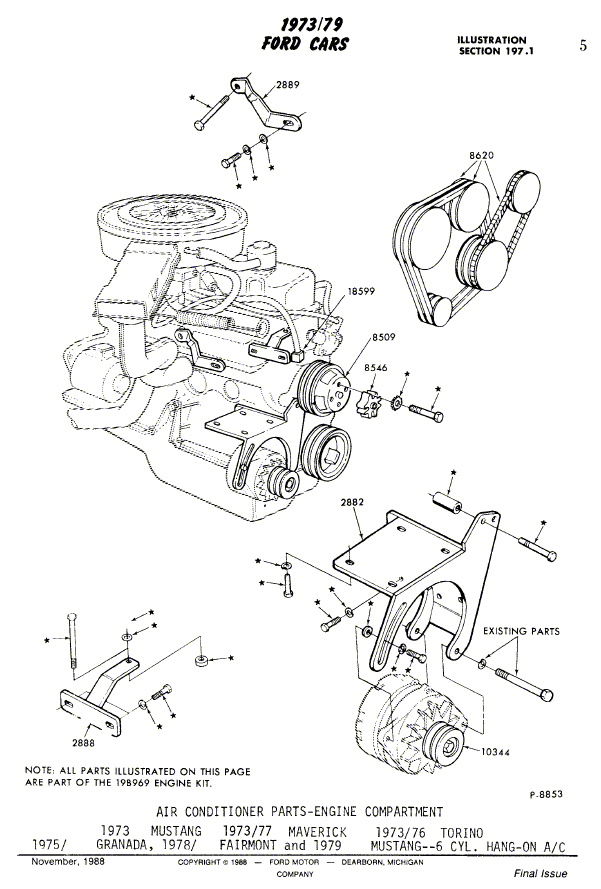

73-77 Integral A/C 6 Cyl	70-72 Hang-on A/C 6 Cyl	73-77 Hang-on A/C 6 Cyl	Hang-on A/C 8 Cyl

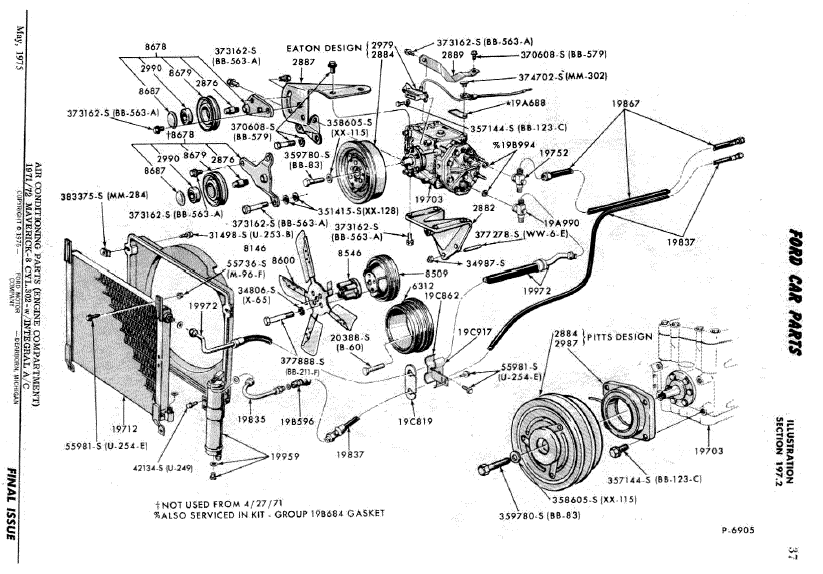

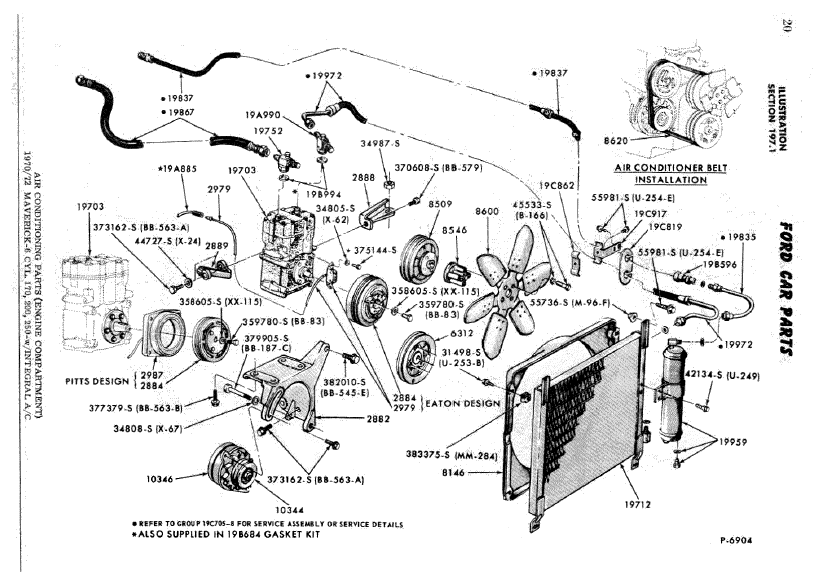

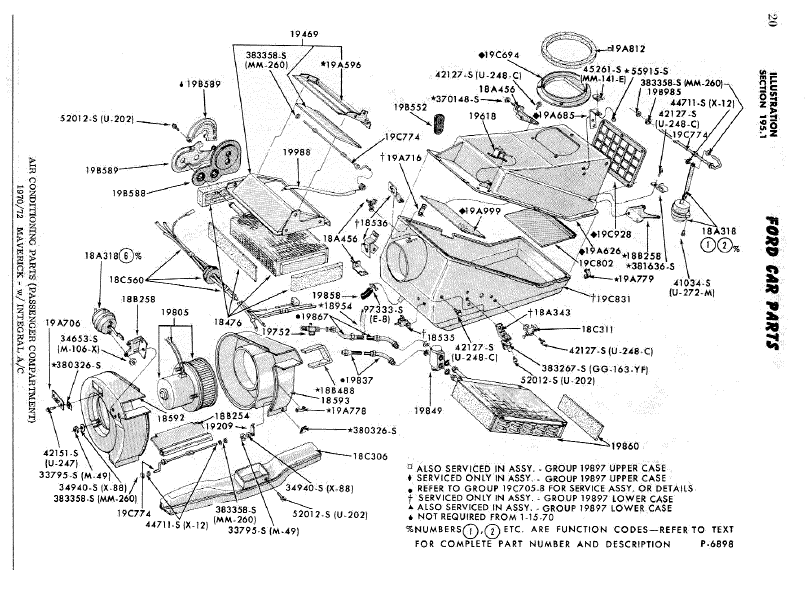

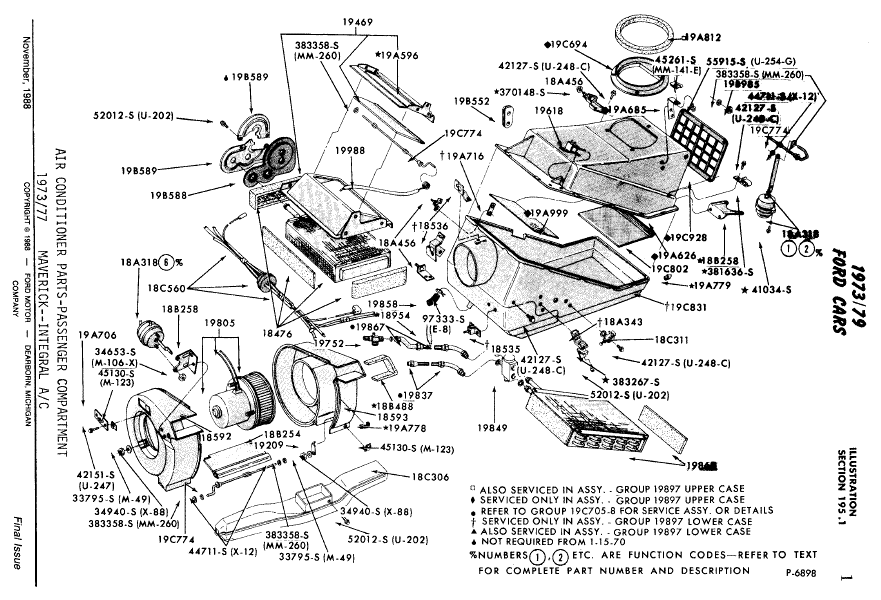

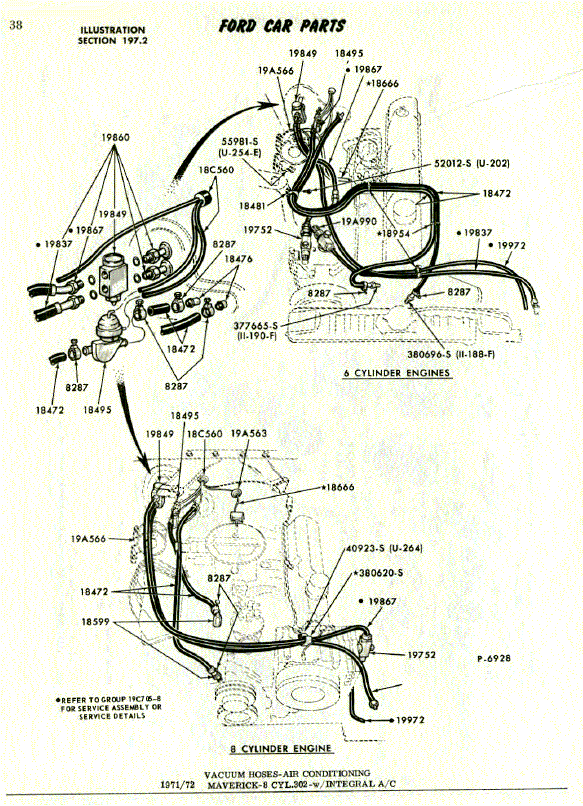

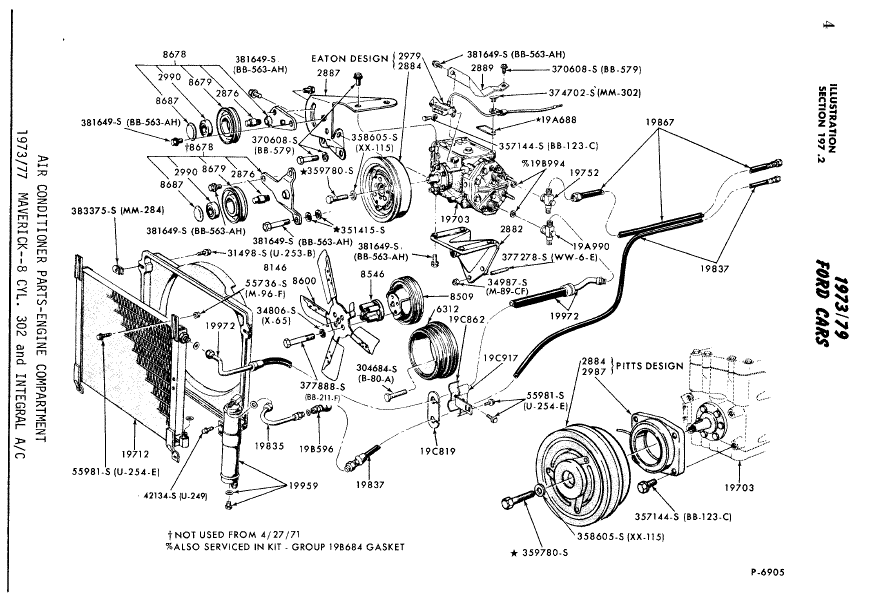

70-72 Integral A/C 8 Cyl	73-77 Integral A/C 8 Cyl	70-72 Integral A/C	73-77 Integral A/C

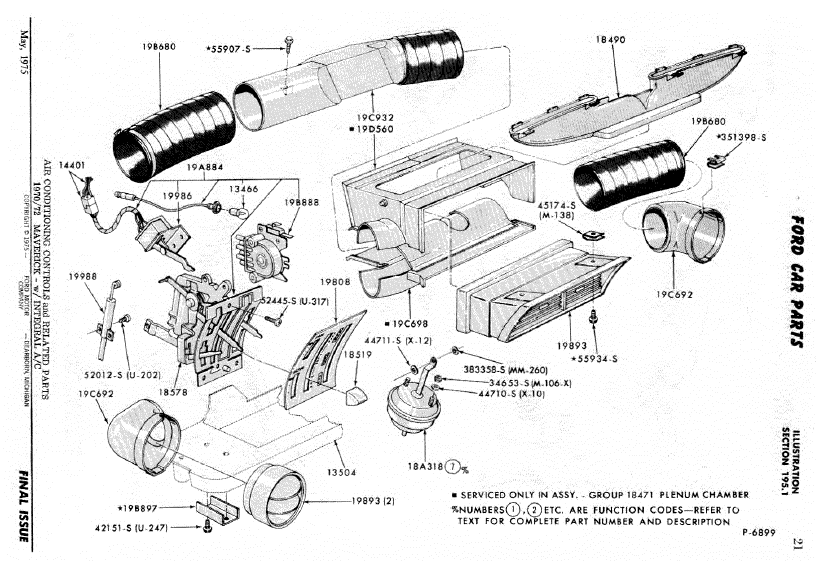

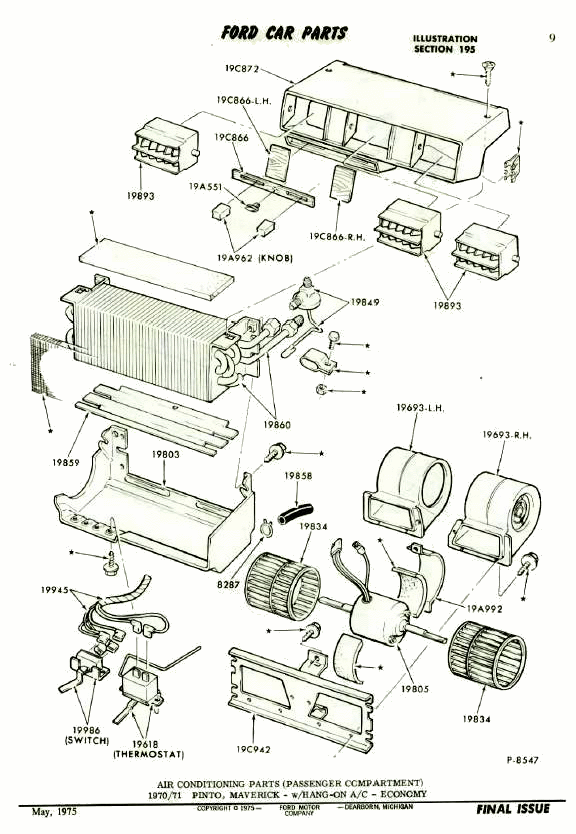

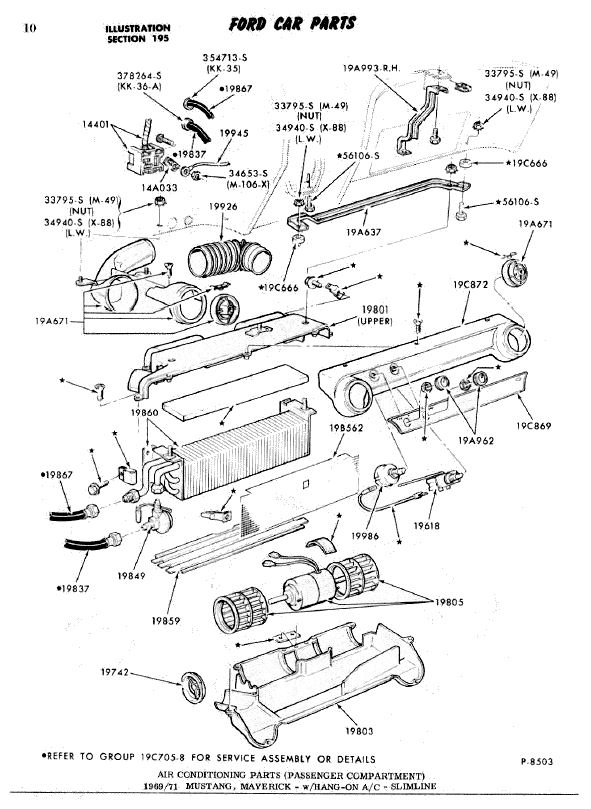

> 70-71 Economy A/C	70-71 Slimline A/C	70-72 A/C Controls	'72 Evaporator

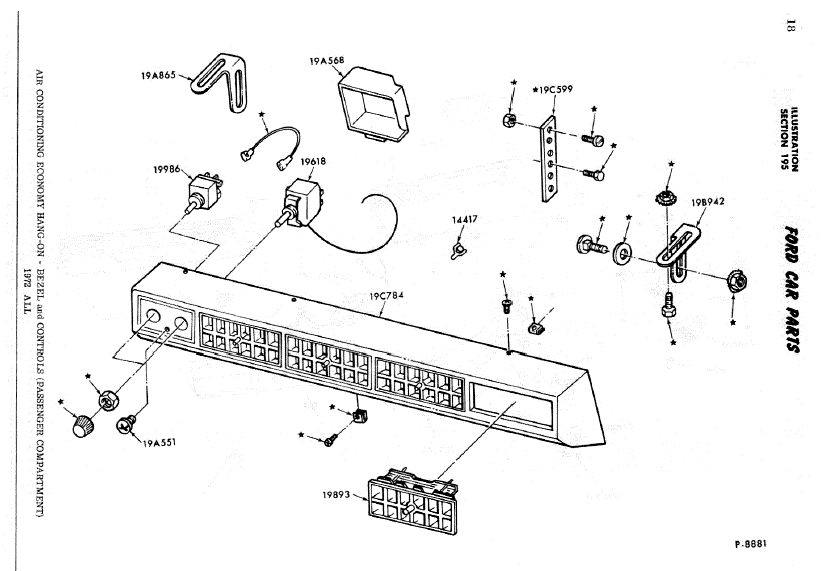

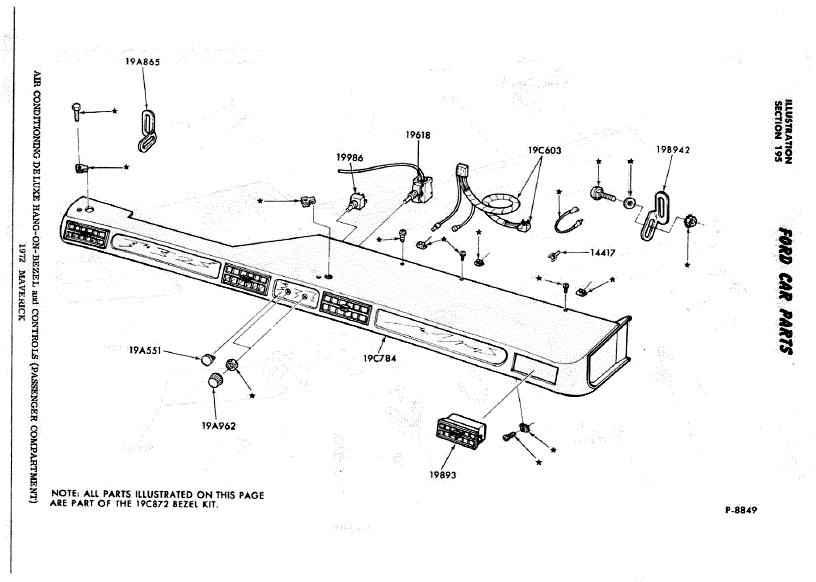

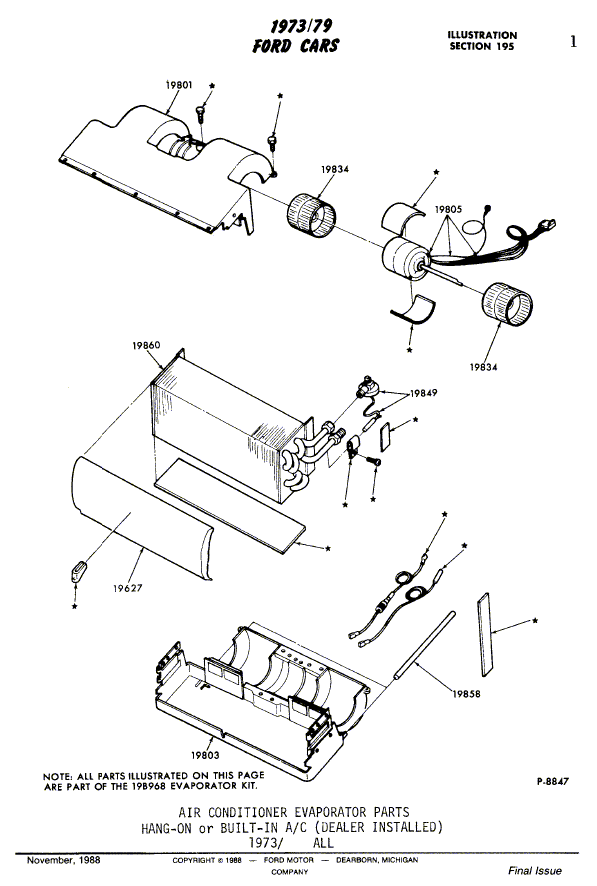

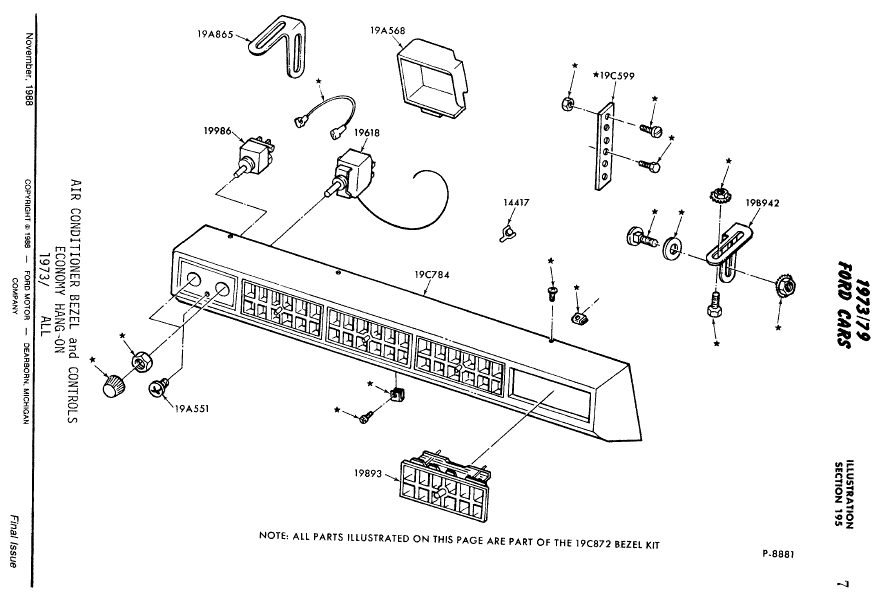

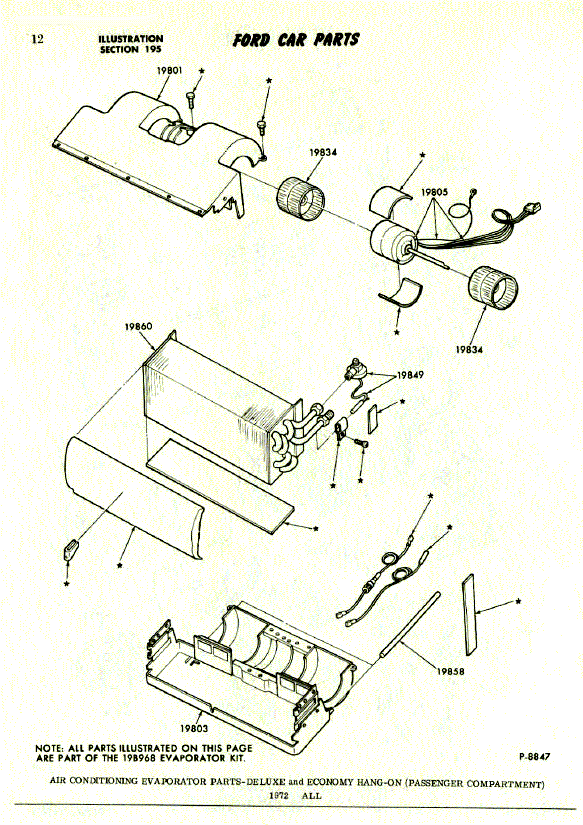

73-77 Evaporator (Dealer Installed)	'72 Economy A/C	'72 Deluxe A/C	73-77 Economy Hang-On

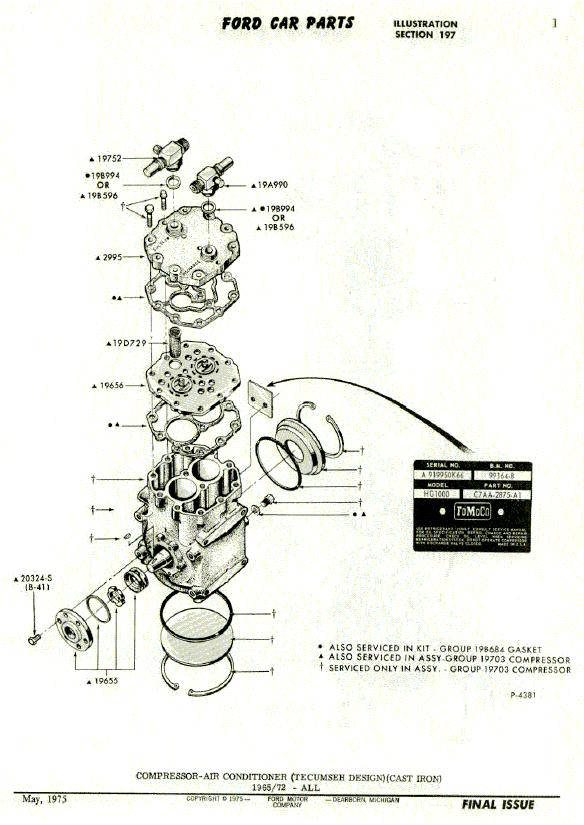

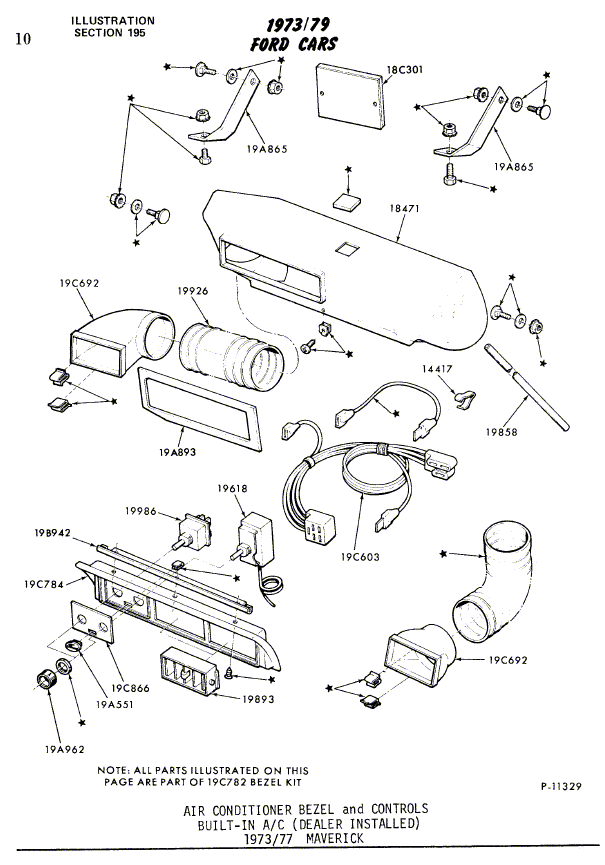

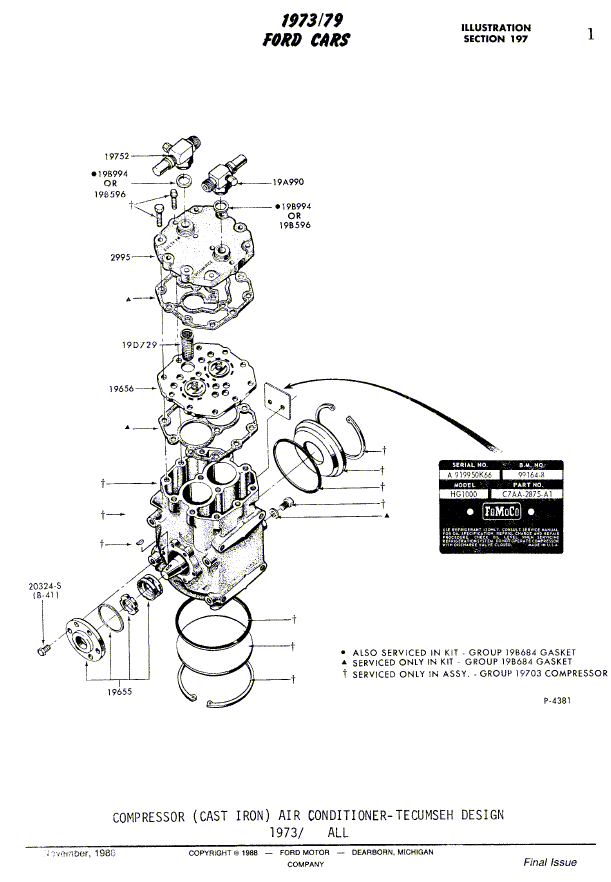

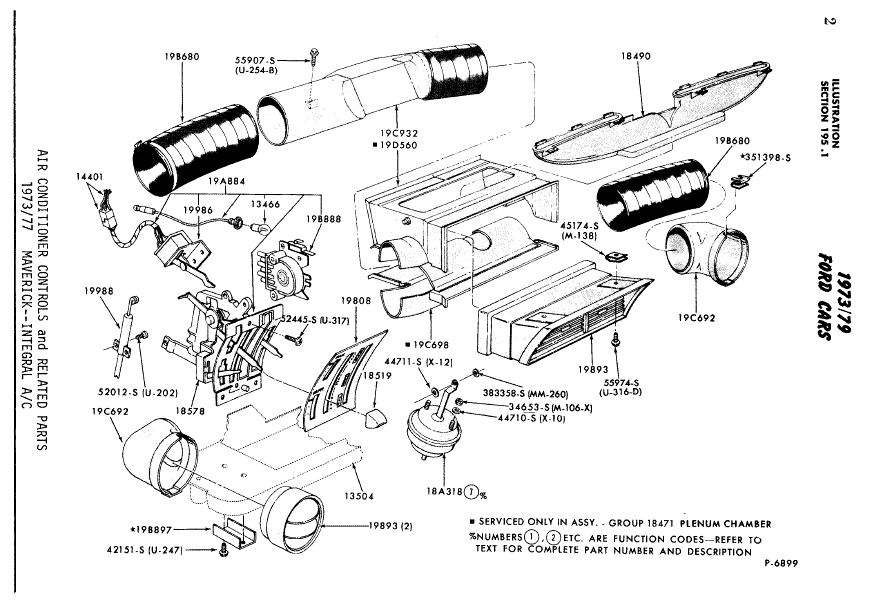

73-77 A/C Controls (Integral)	73-77 Built-In (Dealer Installed)	65-72 Tecumseh Compressor	73-79 Tecumseh Compressor

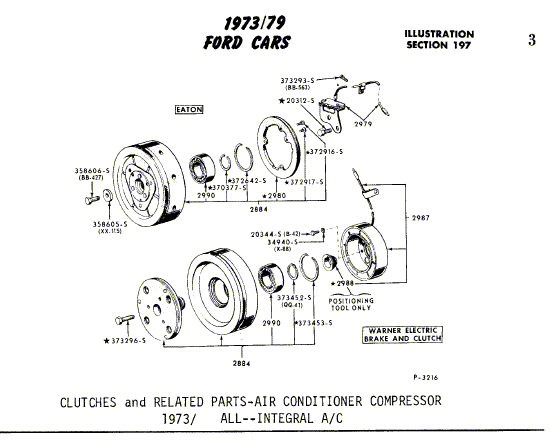

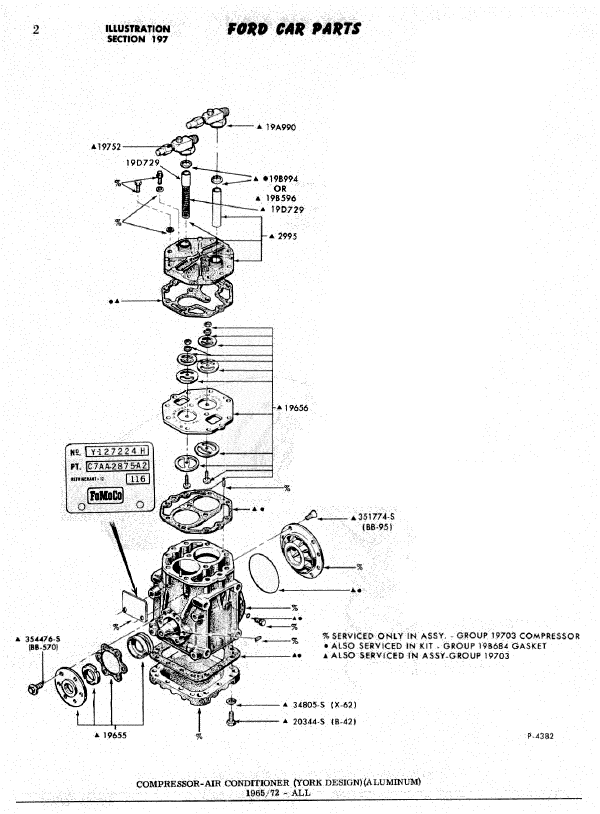

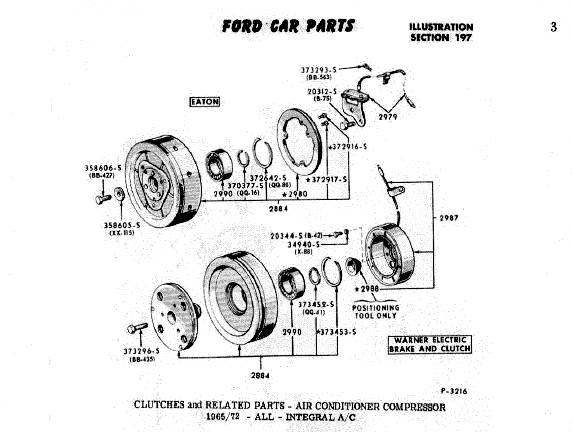

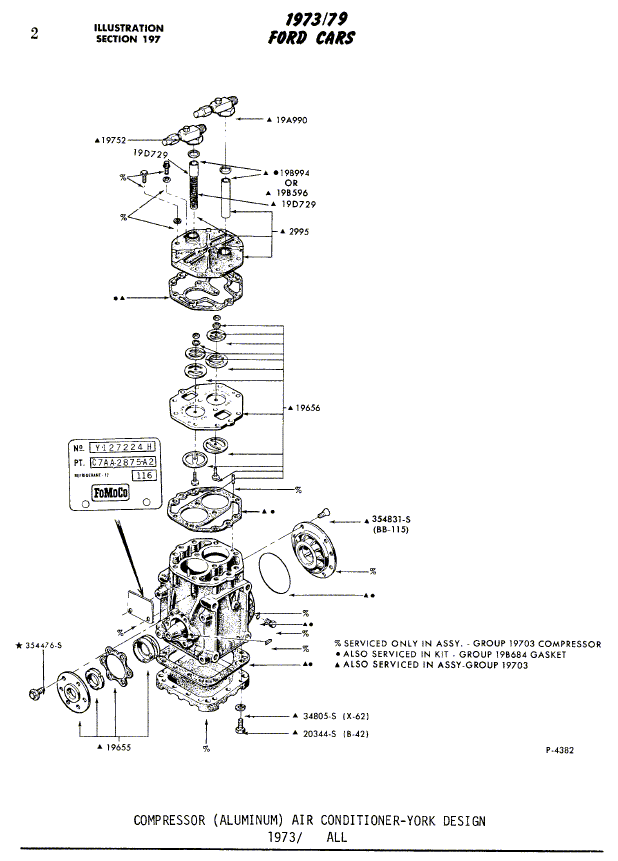

65-72 York Compressor	73-79 York Compressor	65-72 Clutch	73-79 Clutch

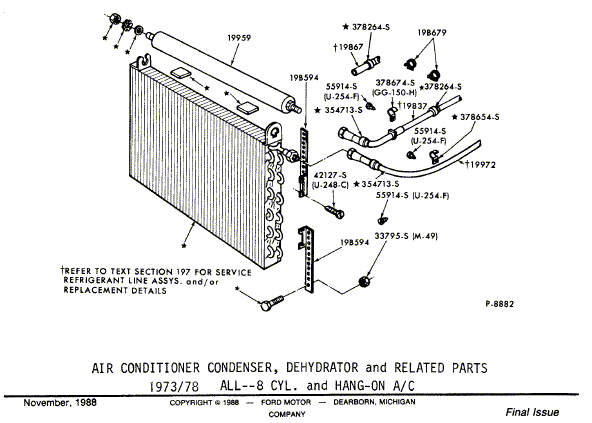

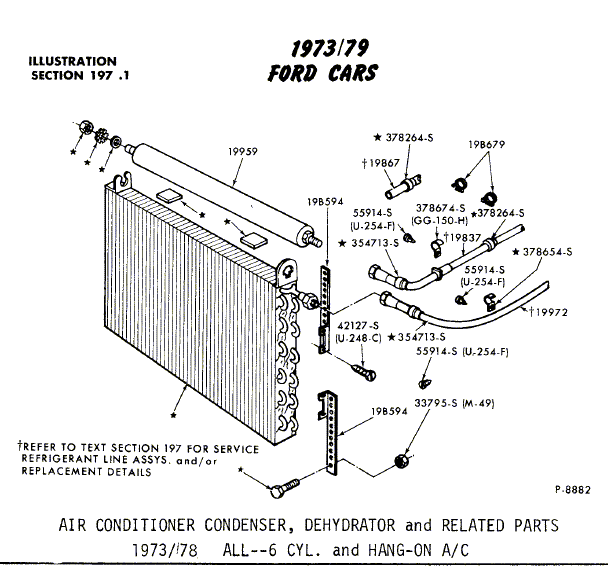

70-72 Dryer 6 Cyl	70-72 Dryer 8 Cyl	73-77 6 Cyl	73-77 8 Cyl

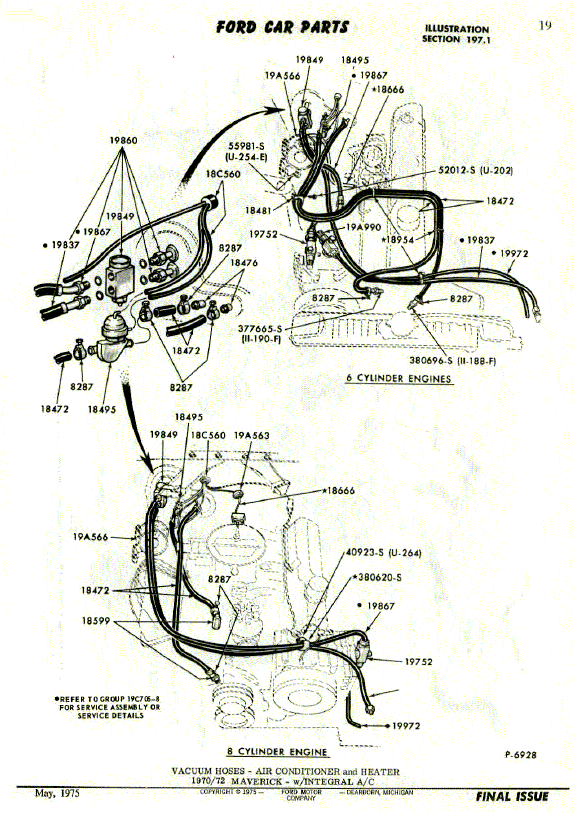

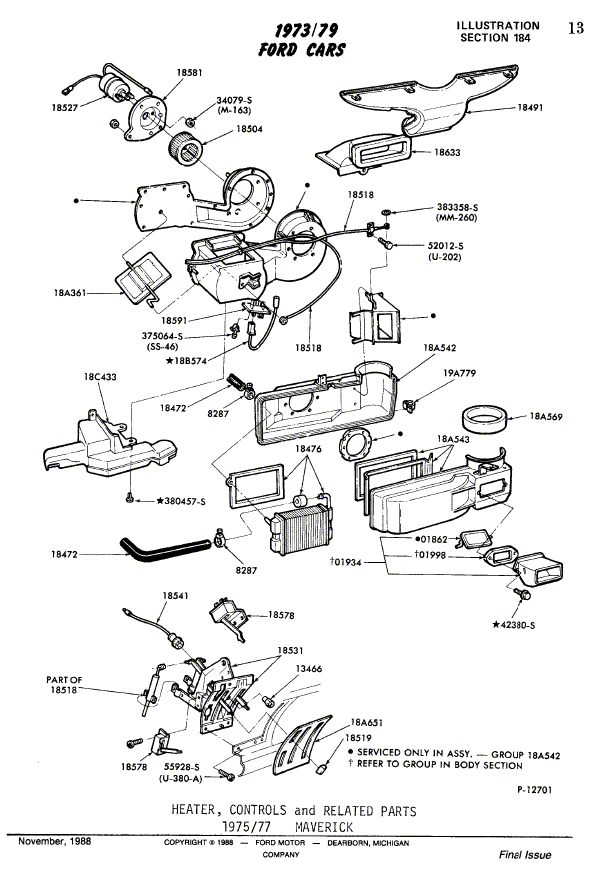

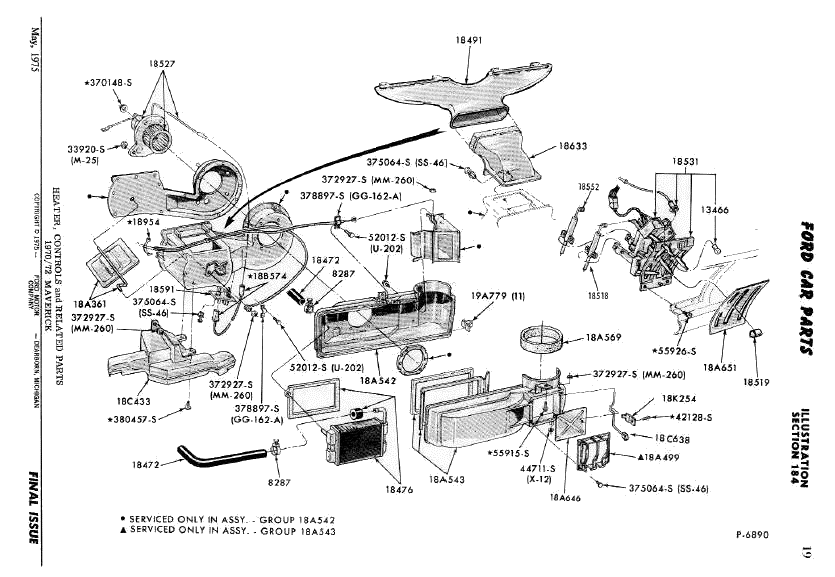

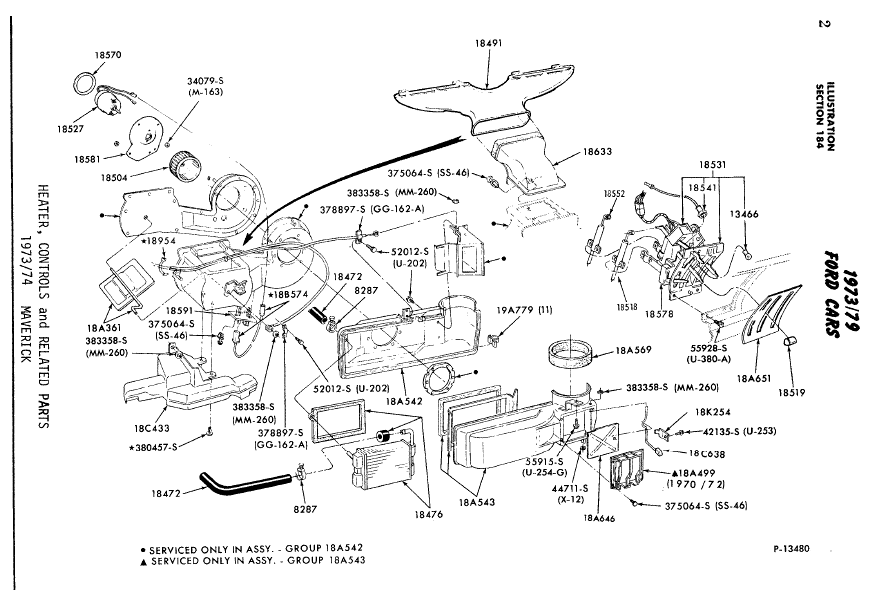

70-72 Heater, Controls	73-74 Heater, Controls	75-77 Heater, Controls	70-72 Vacuum A/C and Heater Hoses

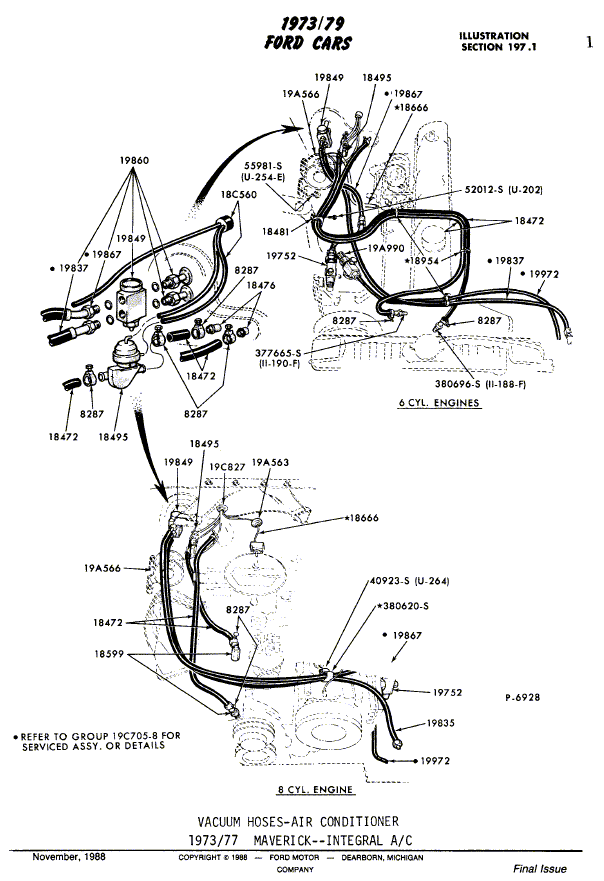

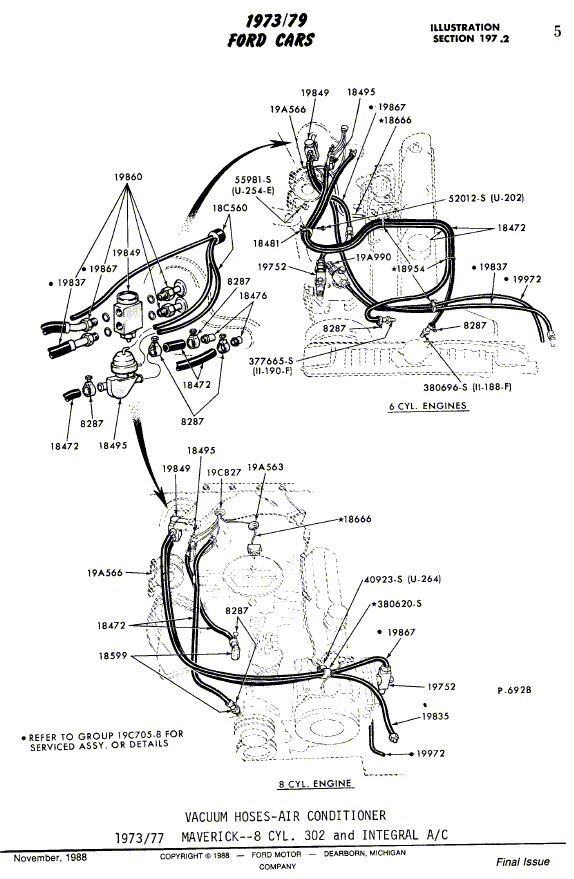

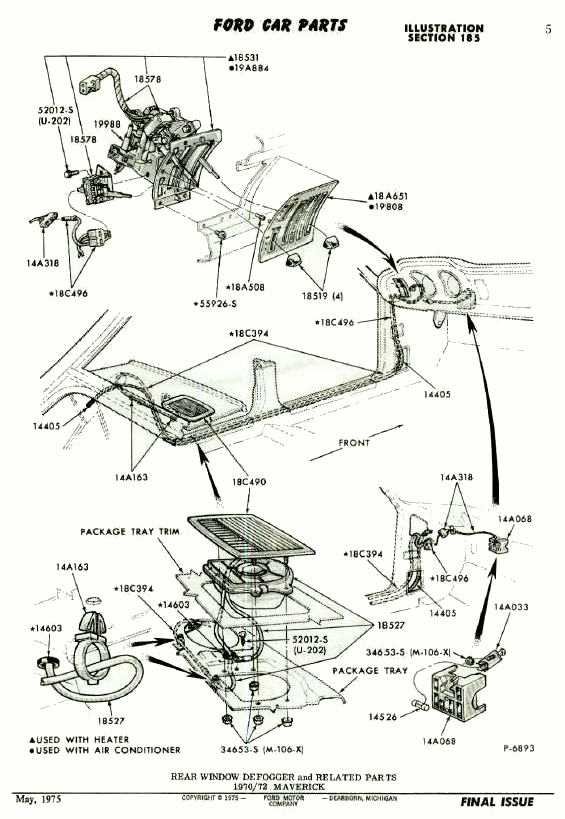

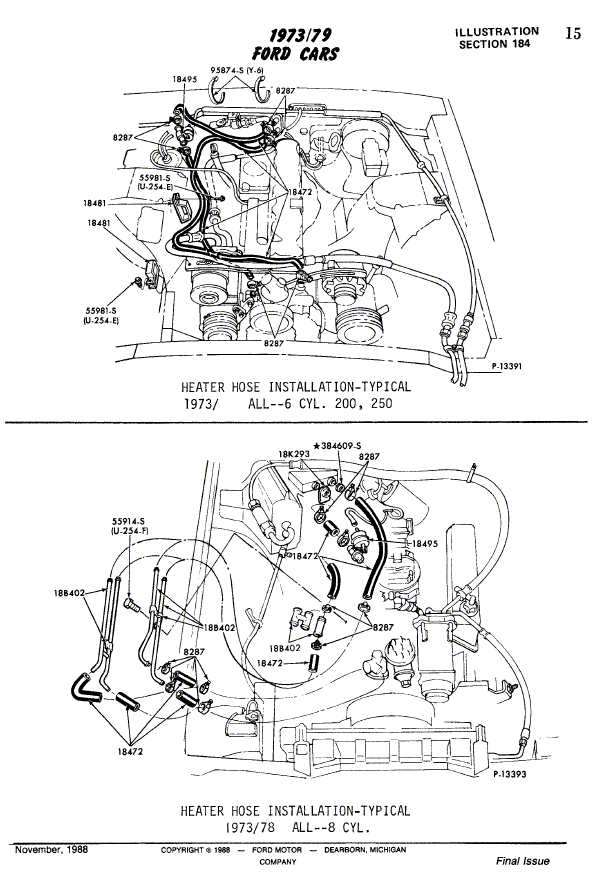

73-77 Vacuum A/C and Heater Hoses	73-77 8 Cyl Vacuum Hose A/C	73-77 Heater Hoses	70-72 Rear Defogger

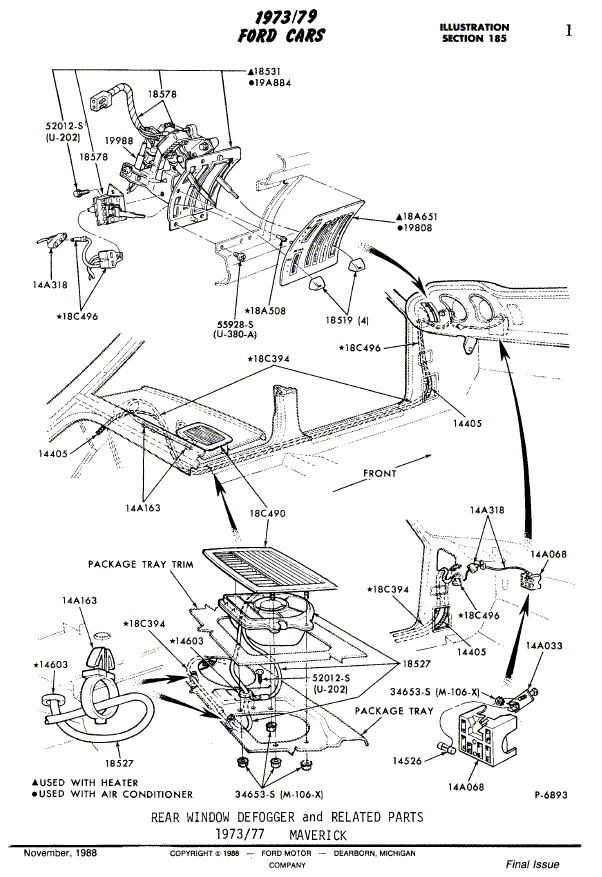

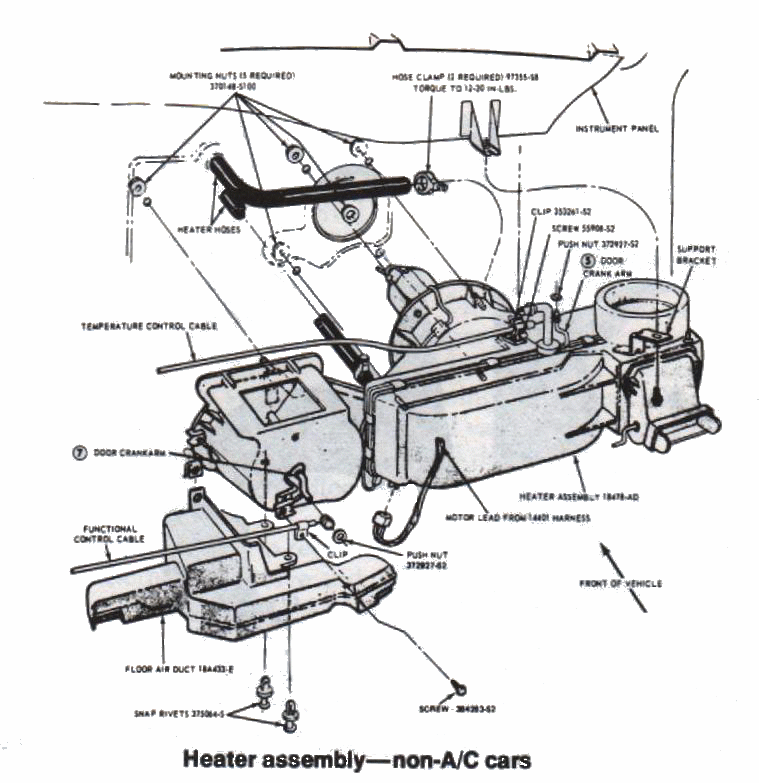

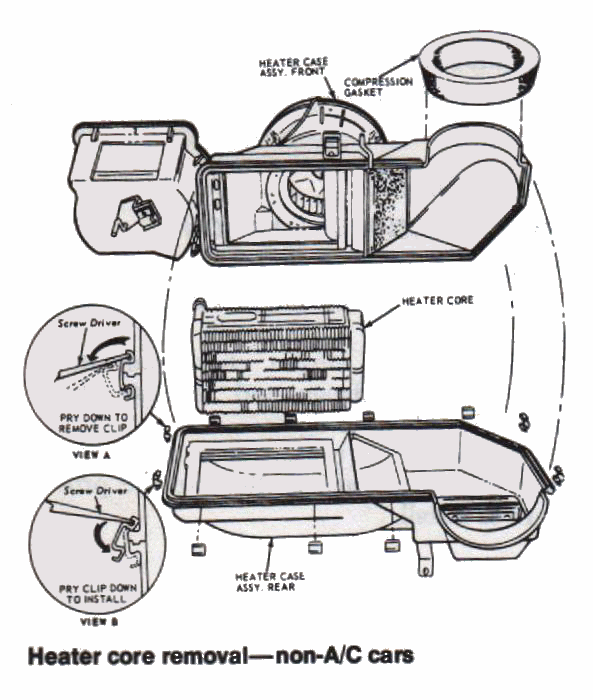

73-77 Rear Defogger	Heater Core	Heater Assembly non-A/C
